10 System Status and Configuration Module (SSCM)
10.1 Introduction
10.1.1 Overview
The System Status and Configuration Module (SSCM), pictured in Figure 88, provides
central device functionality.

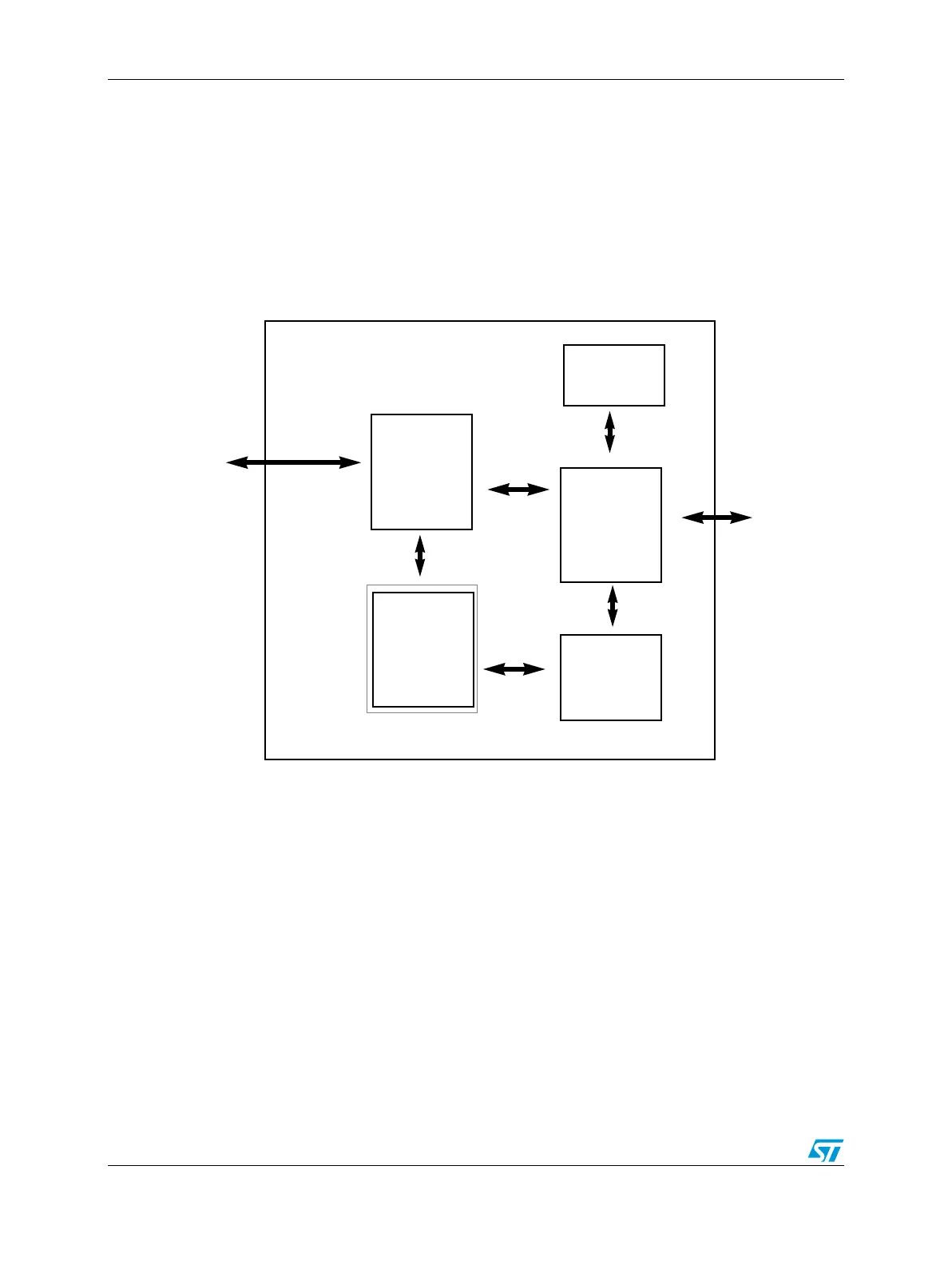

Figure 88. SSCM block diagram
10.1.2 Features
The SSCM includes these features:
● System configuration and status
– Memory sizes/status
– Device mode and security status
– Determine boot vector
– Search Code Flash for bootable sector
–DMA status
● Debug status port enable and selection
● Bus and peripheral abort enable/disable
Bus
System Status and Configuration Module
Interface
Password
Comparator
RevID
Hardmacro
Core
Logic
System
Status
Peripheral
Interface
Bus
Debug
Port
