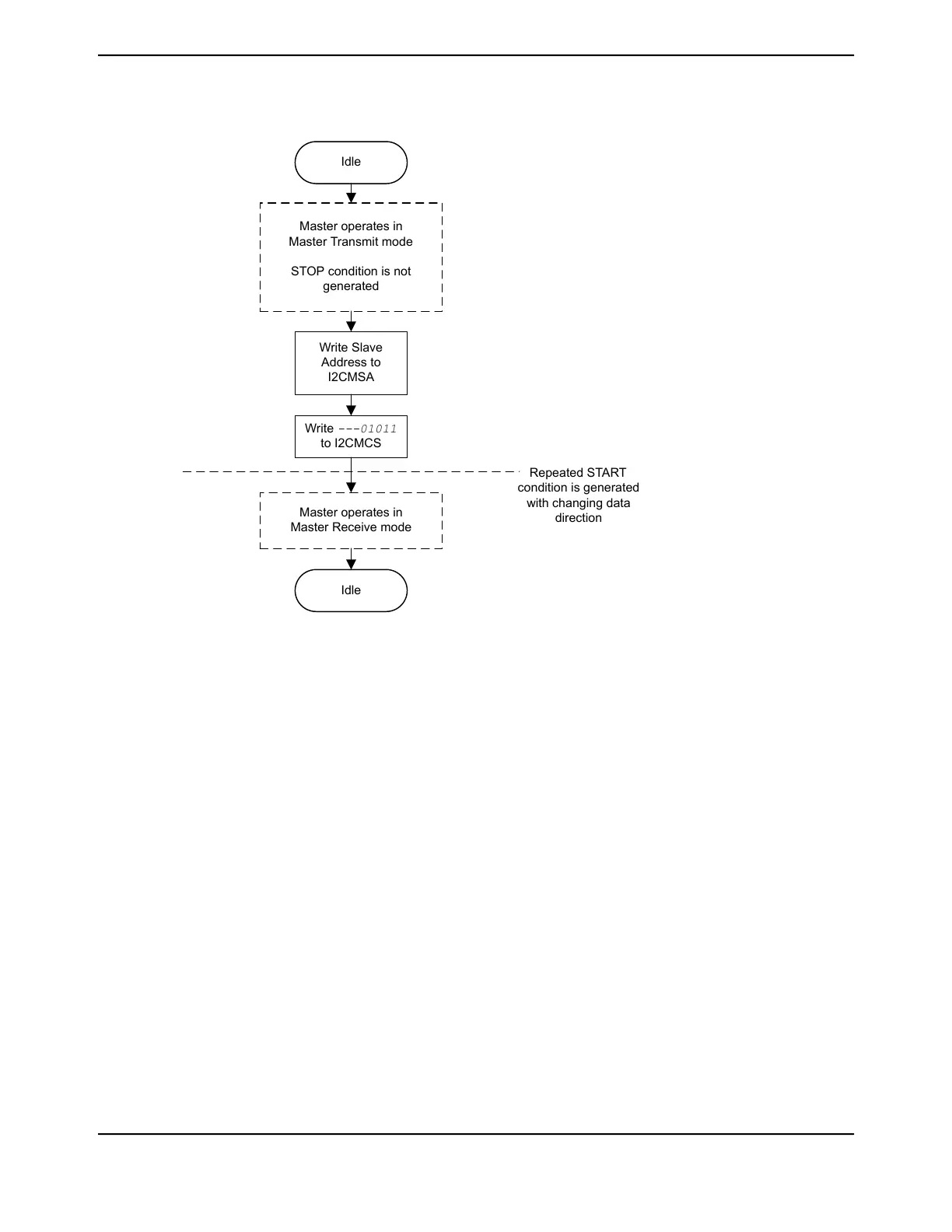

Figure 18-12. Master RECEIVE with Repeated START after Master TRANSMIT
Idle
Master operates in
Master Transmit mode
STOP condition is not
generated
Write Slave
Address to
I2CMSA
Write ---01011
to I2CMCS
Master operates in
Master Receive mode
Idle
Repeated START
condition is generated
with changing data
direction
June 18, 20141294
Texas Instruments-Production Data
Inter-Integrated Circuit (I
2
C) Interface
