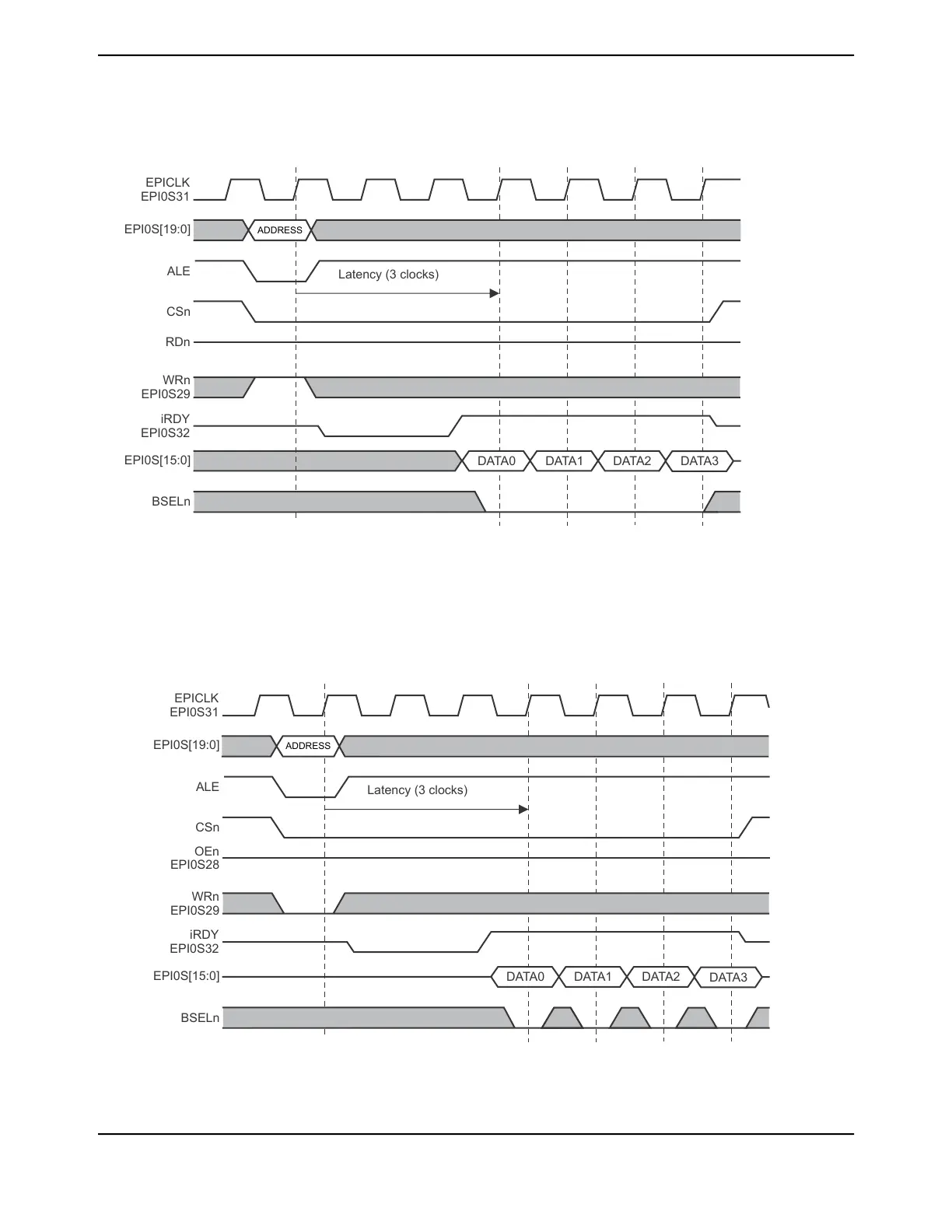

Figure 11-7. PSRAM Burst Read
Latency (3 clocks)
DATA0 DATA1 DATA2
DATA3
EPICLK
EPI0S31
EPI0S[19:0]
ALE
CSn
RDn
WRn
EPI0S29
iRDY
EPI0S32
EPI0S[15:0]
BSELn
ADDRESS
Figure 11-8. PSRAM Burst Write
Latency (3 clocks)
DATA0 DATA1 DATA2
DATA3
EPICLK
EPI0S31
EPI0S[19:0]
ALE
CSn
OEn
EPI0S28
WRn
EPI0S29
iRDY
EPI0S32
EPI0S[15:0]
BSELn
ADDRESS
839June 18, 2014
Texas Instruments-Production Data
Tiva
™
TM4C1294NCPDT Microcontroller
