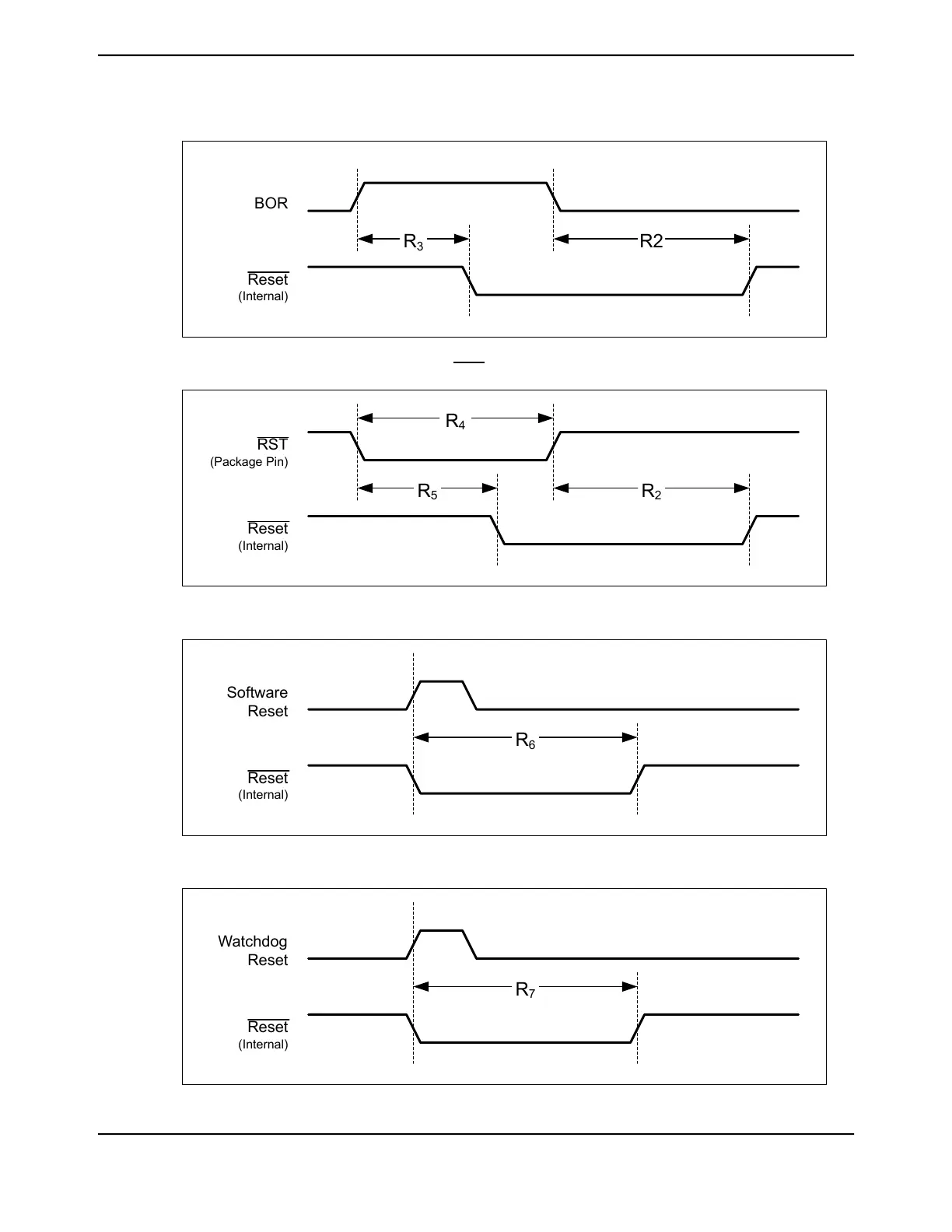

Figure 27-10. Brown-Out Reset Timing
Reset
(Internal)
R2
BOR
R
3
Figure 27-11. External Reset Timing (RST)
RST
(Package Pin)
Reset
(Internal)
R
4
R
5
R
2
Figure 27-12. Software Reset Timing
Software
Reset
Reset
(Internal)
R
6
Figure 27-13. Watchdog Reset Timing
Watchdog
Reset
Reset
(Internal)
R
7
June 18, 20141832
