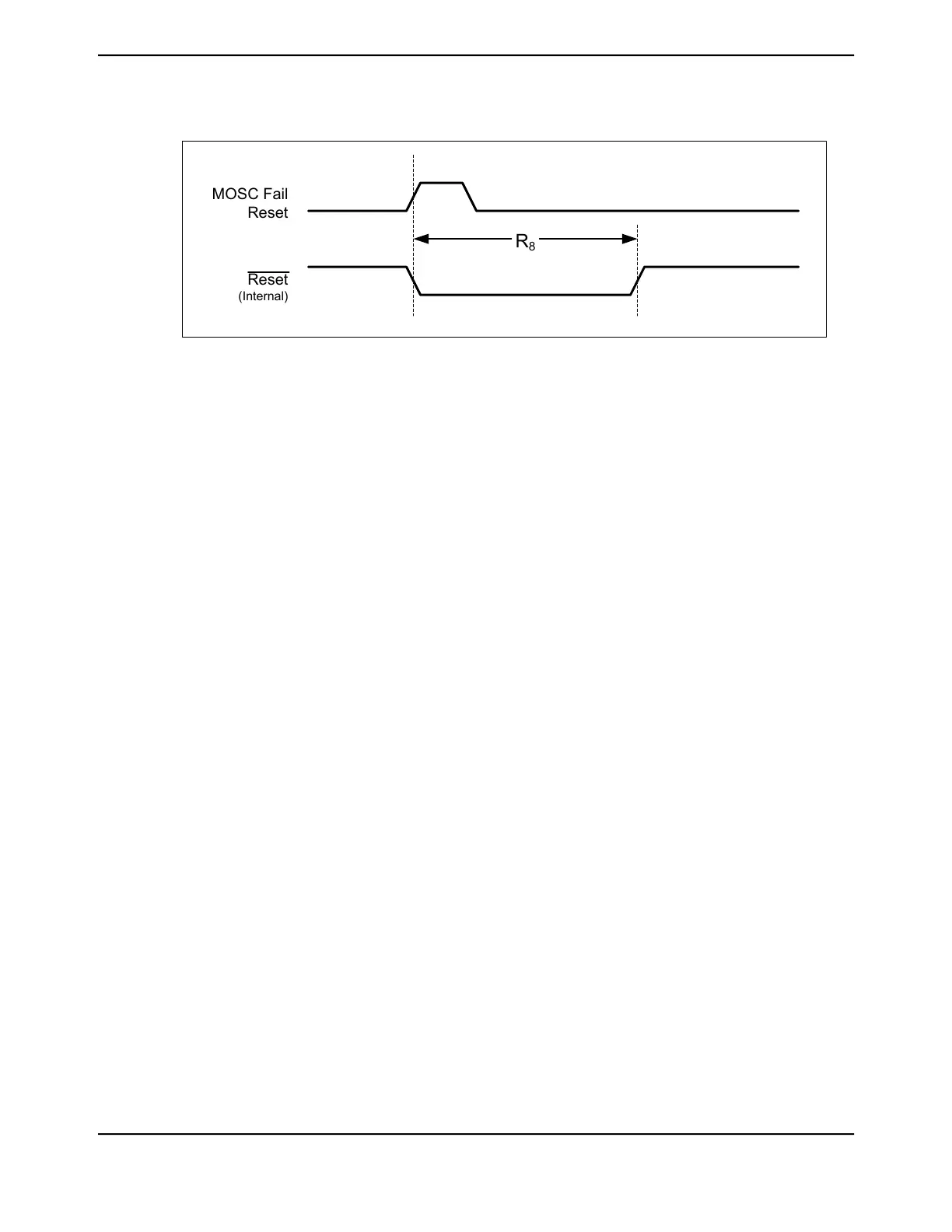

Figure 27-14. MOSC Failure Reset Timing
MOSC Fail
Reset
Reset
(Internal)
R
8
1833June 18, 2014
Texas Instruments-Production Data
Tiva
™
TM4C1294NCPDT Microcontroller
