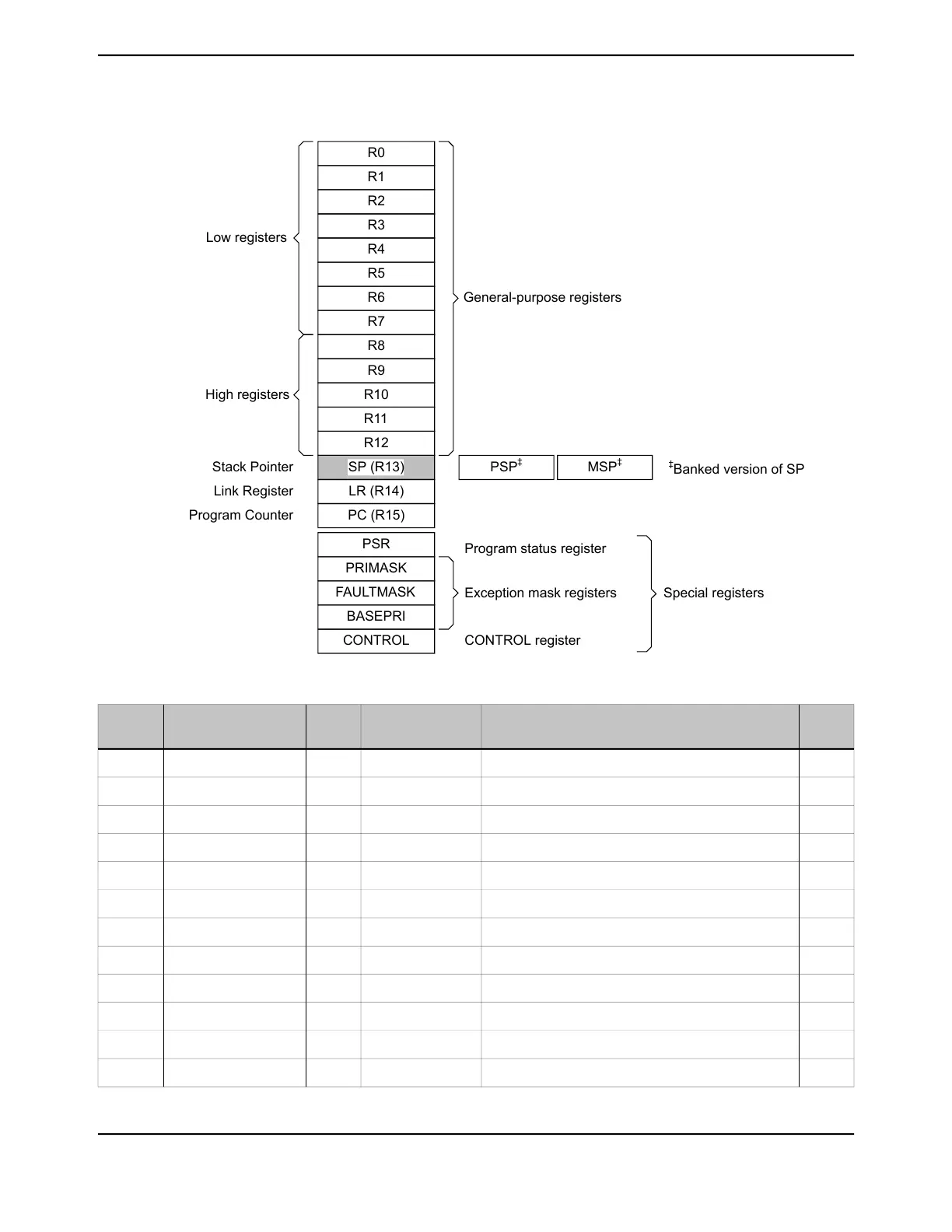

Figure 2-3. Cortex-M4F Register Set

SP (R13)

LR (R14)

PC (R15)

R10

R11

R12

Low registers

High registers

MSP

‡

PSP

‡

PSR

PRIMASK

FAULTMASK

BASEPRI

CONTROL

General-purpose registers

Stack Pointer

Link Register

Program Counter

Program status register

Exception mask registers

CONTROL register

Special registers

‡

Banked version of SP

Table 2-2. Processor Register Map

See

page

DescriptionResetTypeNameOffset

88Cortex General-Purpose Register 0-RWR0-

88Cortex General-Purpose Register 1-RWR1-

88Cortex General-Purpose Register 2-RWR2-

88Cortex General-Purpose Register 3-RWR3-

88Cortex General-Purpose Register 4-RWR4-

88Cortex General-Purpose Register 5-RWR5-

88Cortex General-Purpose Register 6-RWR6-

88Cortex General-Purpose Register 7-RWR7-

88Cortex General-Purpose Register 8-RWR8-

88Cortex General-Purpose Register 9-RWR9-

88Cortex General-Purpose Register 10-RWR10-

88Cortex General-Purpose Register 11-RWR11-

June 18, 201486

Texas Instruments-Production Data

The Cortex-M4F Processor
