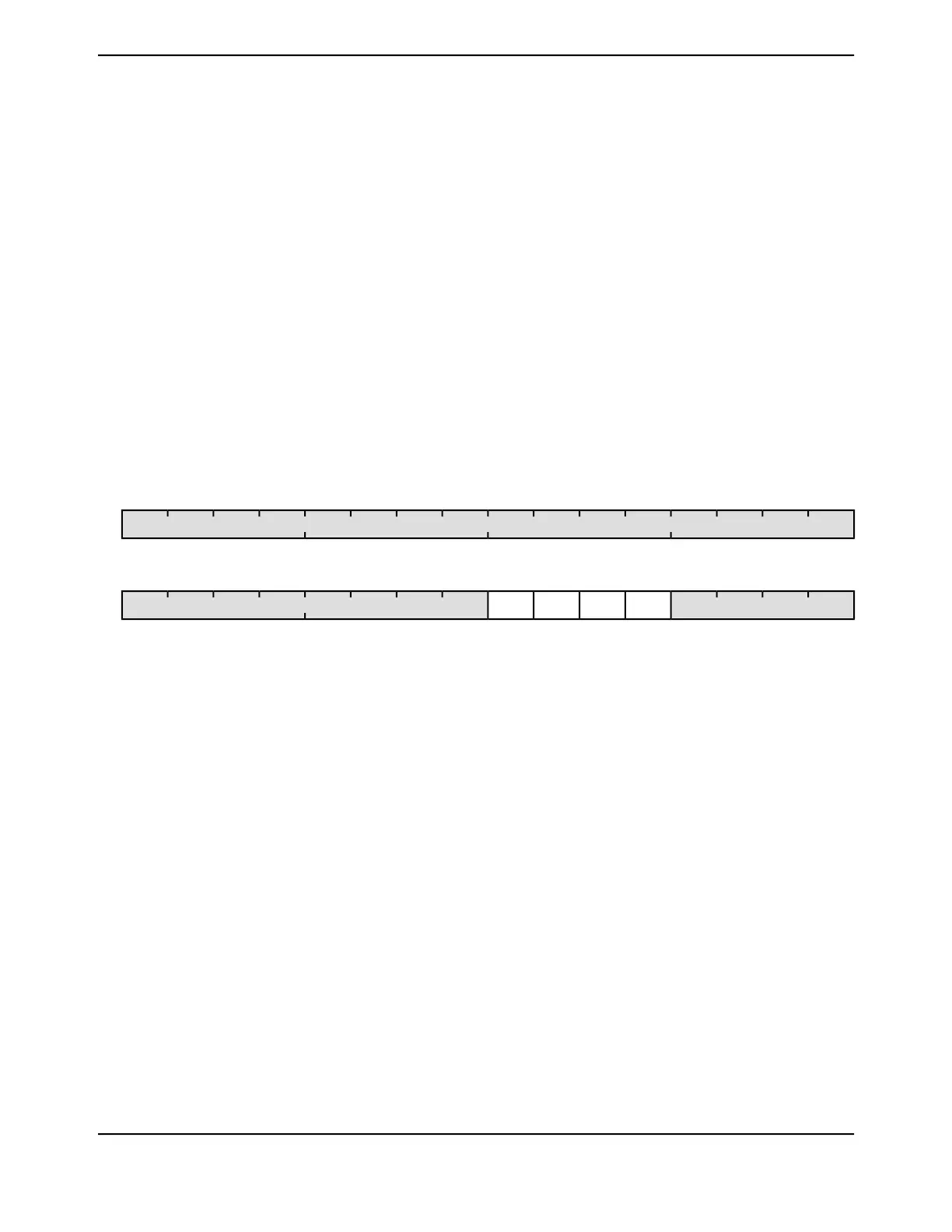

Register 28: GPIO Wake Level (GPIOWAKELVL), offset 0x544
This register is used to configure the wake level for K[7:4] in the hibernation module. The wake
source must be enabled in the GPIOWAKEPEN register at offset 0x540. In order for this register
configuration to become implemented, the WUUNLK bit needs to be set in the HIBIO register at offset
0x02C in the hibernation module.
Note: This register is only available on Port K.
GPIO Wake Level (GPIOWAKELVL)
GPIO Port A (AHB) base: 0x4005.8000
GPIO Port B (AHB) base: 0x4005.9000
GPIO Port C (AHB) base: 0x4005.A000
GPIO Port D (AHB) base: 0x4005.B000
GPIO Port E (AHB) base: 0x4005.C000
GPIO Port F (AHB) base: 0x4005.D000
GPIO Port G (AHB) base: 0x4005.E000
GPIO Port H (AHB) base: 0x4005.F000
GPIO Port J (AHB) base: 0x4006.0000
GPIO Port K (AHB) base: 0x4006.1000
GPIO Port L (AHB) base: 0x4006.2000
GPIO Port M (AHB) base: 0x4006.3000
GPIO Port N (AHB) base: 0x4006.4000
GPIO Port P (AHB) base: 0x4006.5000
GPIO Port Q (AHB) base: 0x4006.6000
Offset 0x544
Type RW, reset 0x0000.0000
16171819202122232425262728293031
reserved
ROROROROROROROROROROROROROROROROType
0000000000000000Reset
0123456789101112131415
reserved
WAKELVL4WAKELVL5WAKELVL6WAKELVL7
reserved
RORORORORWRWRWRWROROROROROROROROType
0000000000000000Reset
DescriptionResetTypeNameBit/Field
Software should not rely on the value of a reserved bit. To provide
compatibility with future products, the value of a reserved bit should be
preserved across a read-modify-write operation.
0x0000.000ROreserved31:8
K[7] Wake Level
DescriptionValue
Wake level low0
Wake level high1
0RWWAKELVL77
K[6] Wake Level
DescriptionValue
Wake level low0
Wake level high1
0RWWAKELVL66
795June 18, 2014
Texas Instruments-Production Data
Tiva
™
TM4C1294NCPDT Microcontroller
To Next Page
