27.4 Load Conditions
Table 27-11 on page 1823 contains the load conditions used for timing measurements.

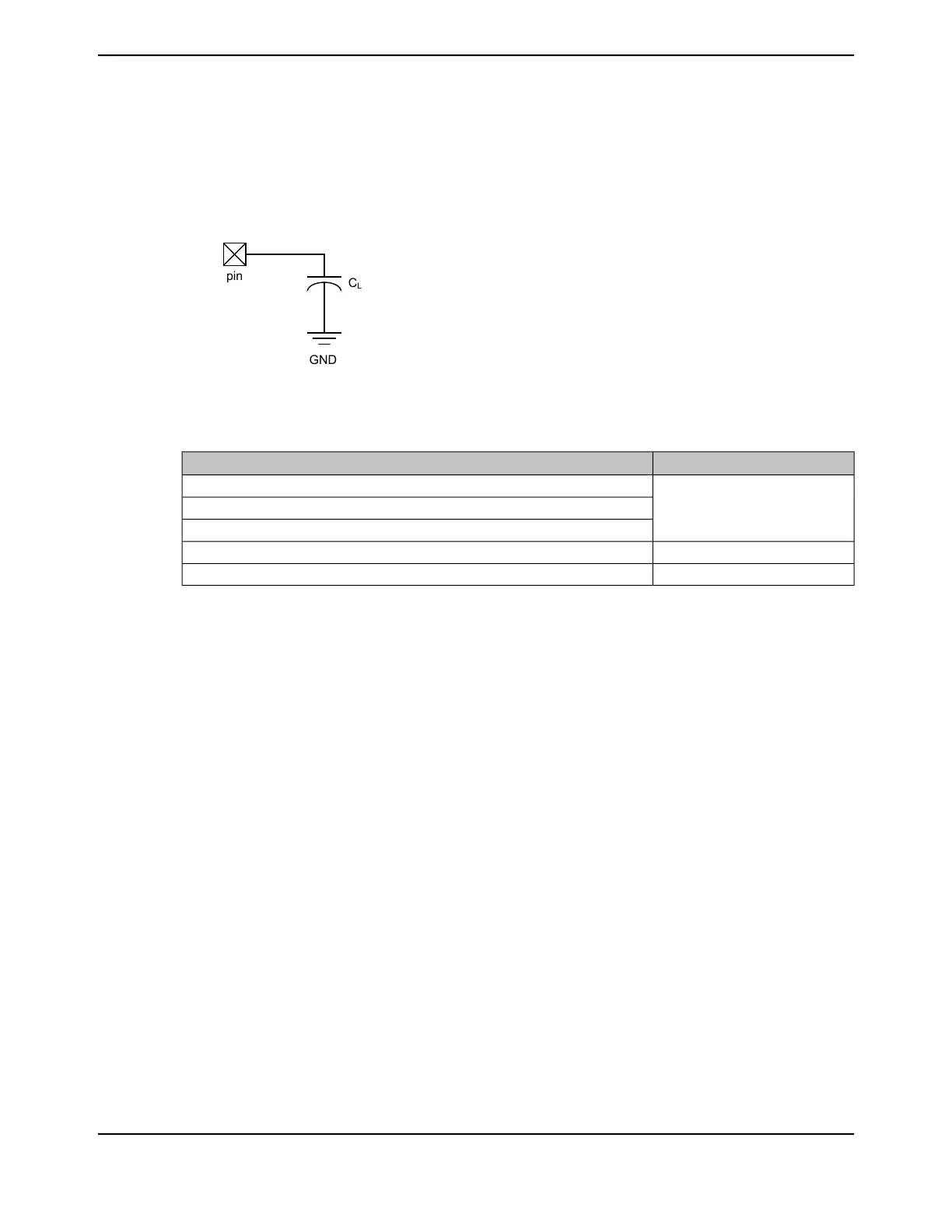

Figure 27-1. Load Conditions
C
L
GND
pin
Table 27-11. Load Conditions
Load Value (C
L
)Signals
30 pF
EPI0S[35:0] SDRAM interface
EPI0S[35:0] General-Purpose interface
EPI0S[35:0] Host-Bus interface
40 pFEPI0S[35:0] PSRAM interface
50 pFAll other digital I/O signals
1823June 18, 2014
Texas Instruments-Production Data
Tiva
™
TM4C1294NCPDT Microcontroller
