Register 30: GPIO Peripheral Property (GPIOPP), offset 0xFC0
The GPIOPP register provides information regarding the GPIO properties.
GPIO Peripheral Property (GPIOPP)
GPIO Port A (AHB) base: 0x4005.8000
GPIO Port B (AHB) base: 0x4005.9000
GPIO Port C (AHB) base: 0x4005.A000
GPIO Port D (AHB) base: 0x4005.B000
GPIO Port E (AHB) base: 0x4005.C000
GPIO Port F (AHB) base: 0x4005.D000
GPIO Port G (AHB) base: 0x4005.E000
GPIO Port H (AHB) base: 0x4005.F000
GPIO Port J (AHB) base: 0x4006.0000
GPIO Port K (AHB) base: 0x4006.1000
GPIO Port L (AHB) base: 0x4006.2000
GPIO Port M (AHB) base: 0x4006.3000
GPIO Port N (AHB) base: 0x4006.4000
GPIO Port P (AHB) base: 0x4006.5000
GPIO Port Q (AHB) base: 0x4006.6000
Offset 0xFC0
Type RO, reset 0x0000.0001

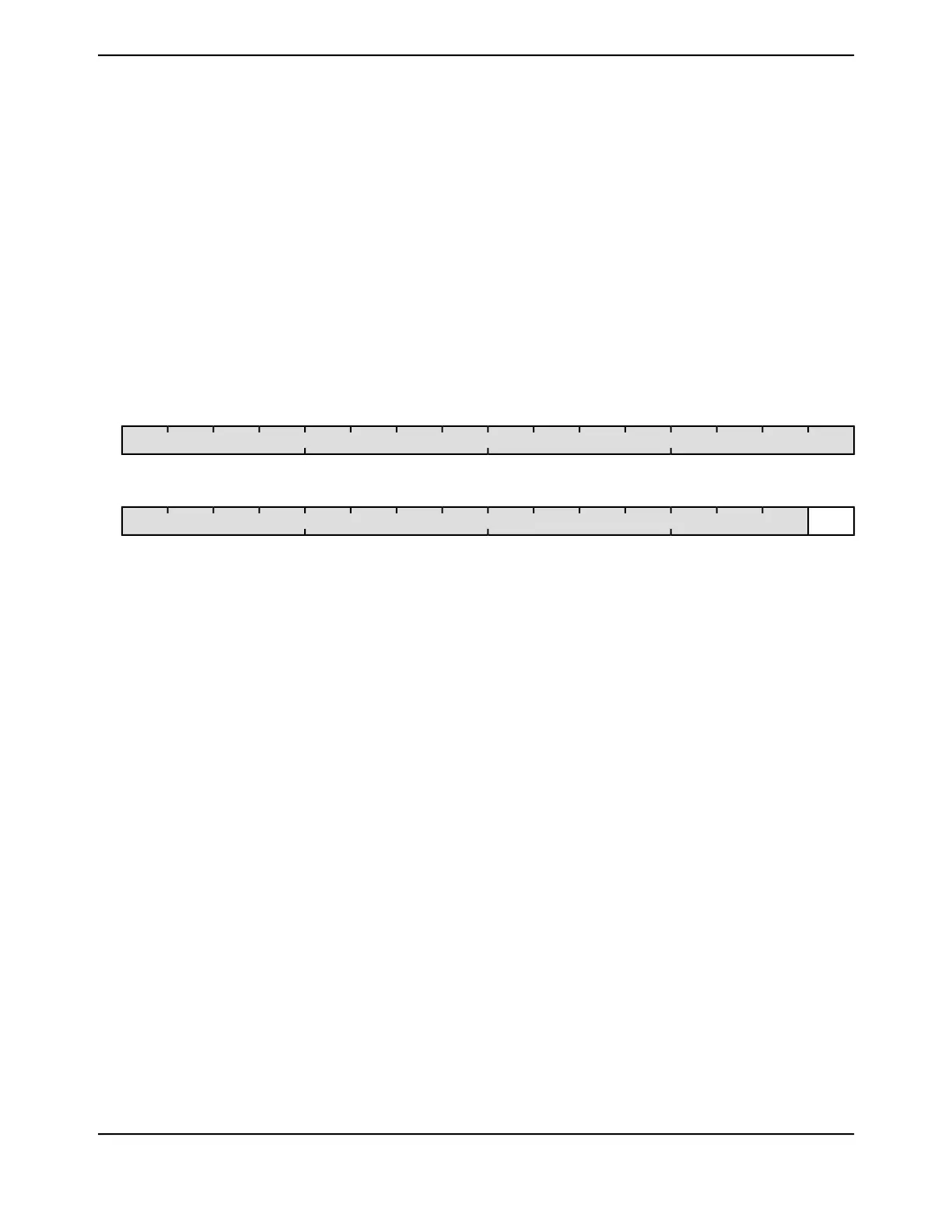

16171819202122232425262728293031
reserved
ROROROROROROROROROROROROROROROROType
0000000000000000Reset
0123456789101112131415
EDEreserved
ROROROROROROROROROROROROROROROROType
1000000000000000Reset
DescriptionResetTypeNameBit/Field
Software should not rely on the value of a reserved bit. To provide
compatibility with future products, the value of a reserved bit should be
preserved across a read-modify-write operation.
0x0ROreserved31:1
Extended Drive Enable
This bit specifies whether the extended drive capabilities are provided.
Extended drive is configured by the EDM bits in the GPIOPC register.
DescriptionValue
No Extended Drive Capability provided.0
Extended Drive Capability provided.1
0x1ROEDE0
799June 18, 2014
Texas Instruments-Production Data
Tiva
™
TM4C1294NCPDT Microcontroller
