Register 14: Ethernet MAC Address 0 High (EMACADDR0H), offset 0x040
The Ethernet MAC Address 0 High (EMACADDR0H) register holds the upper 16 bits of the first
6-byte MAC address of the station. The first (Destination Address) DA byte that is received on the
MII interface corresponds to the least significant byte (Bits [7:0]) of the MAC Address 0 Low Register
(EMACADDR0L) register. For example, if 0x112233445566 is received (0x11 in lane 0 of the first
column) on the MII as the destination address, then the EMAC Address 0 (EMACADDR0x) register
[47:0] is compared with 0x665544332211.

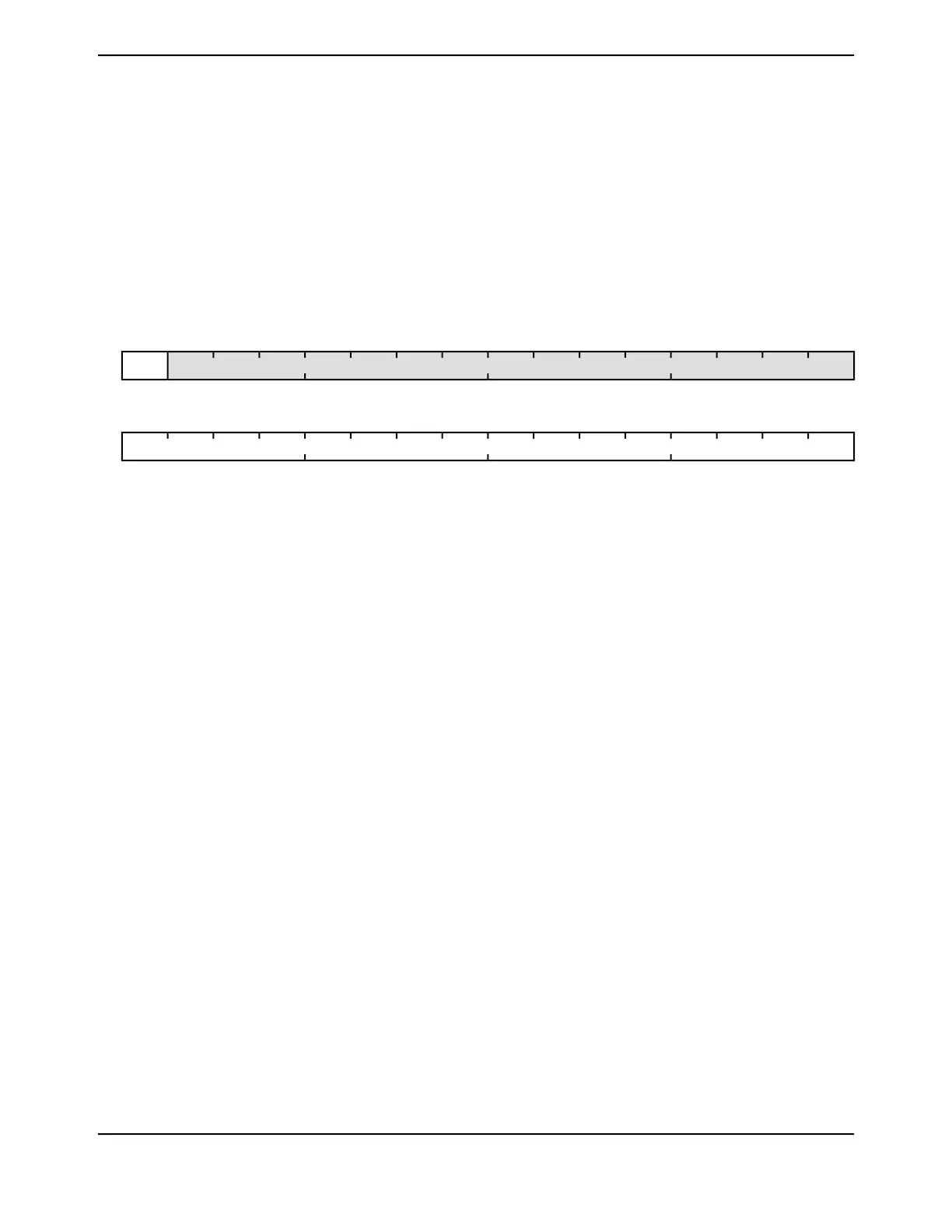

Ethernet MAC Address 0 High (EMACADDR0H)
Base 0x400E.C000
Offset 0x040
Type RW, reset 0x8000.FFFF
16171819202122232425262728293031
reservedAE
ROROROROROROROROROROROROROROROROType
0000000000000001Reset
0123456789101112131415
ADDRHI
RWRWRWRWRWRWRWRWRWRWRWRWRWRWRWRWType
1111111111111111Reset
DescriptionResetTypeNameBit/Field
Address Enable
This register is always valid, so this bit is set always set to 1.
1ROAE31
Software should not rely on the value of a reserved bit. To provide
compatibility with future products, the value of a reserved bit should be
preserved across a read-modify-write operation.
0x0ROreserved30:16
MAC Address0 [47:32]
This field contains the upper 16 bits (47:32) of the first 6-byte MAC
address. The MAC uses this field for filtering the received frames and
inserting the MAC address in the Transmit Flow Control (PAUSE)
Frames.
0xFFFFRWADDRHI15:0
June 18, 20141500
Texas Instruments-Production Data
Ethernet Controller
