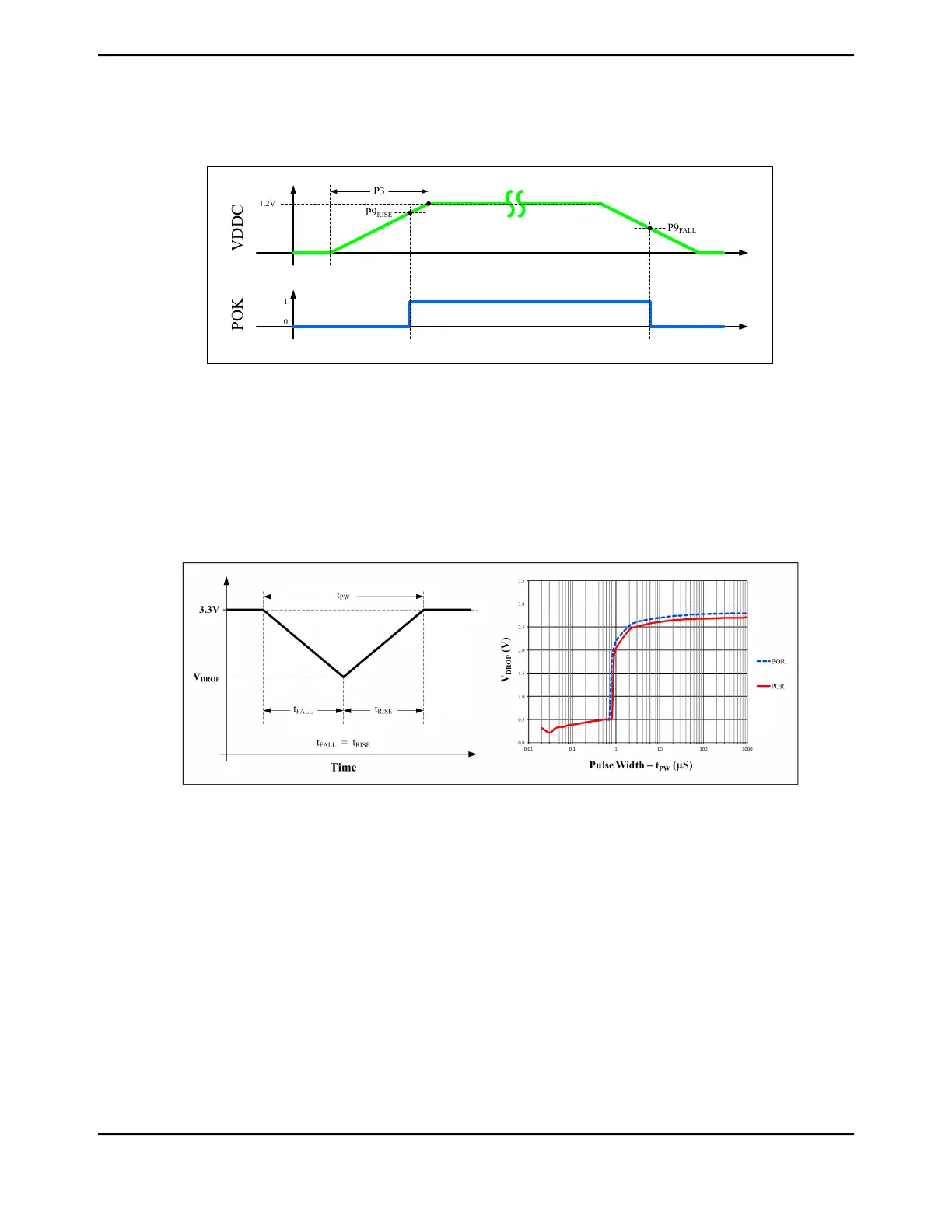

Figure 27-6. POK Assertion vs V
DDC
P3
VDDC
P9
RISE
POK
1.2V
1
0
P9
FALL
27.6.4 Response
27.6.4.1 V
DD
Glitch Response
Figure 27-7 on page 1829 shows the response of the BOR and the POR circuit to glitches on the VDD
supply.
Figure 27-7. POR-BOR V
DD
Glitch Response
27.6.4.2 V
DD
Droop Response
Figure 27-8 on page 1830 shows the response of the BOR and the POR monitors to a drop on the
VDD supply.
