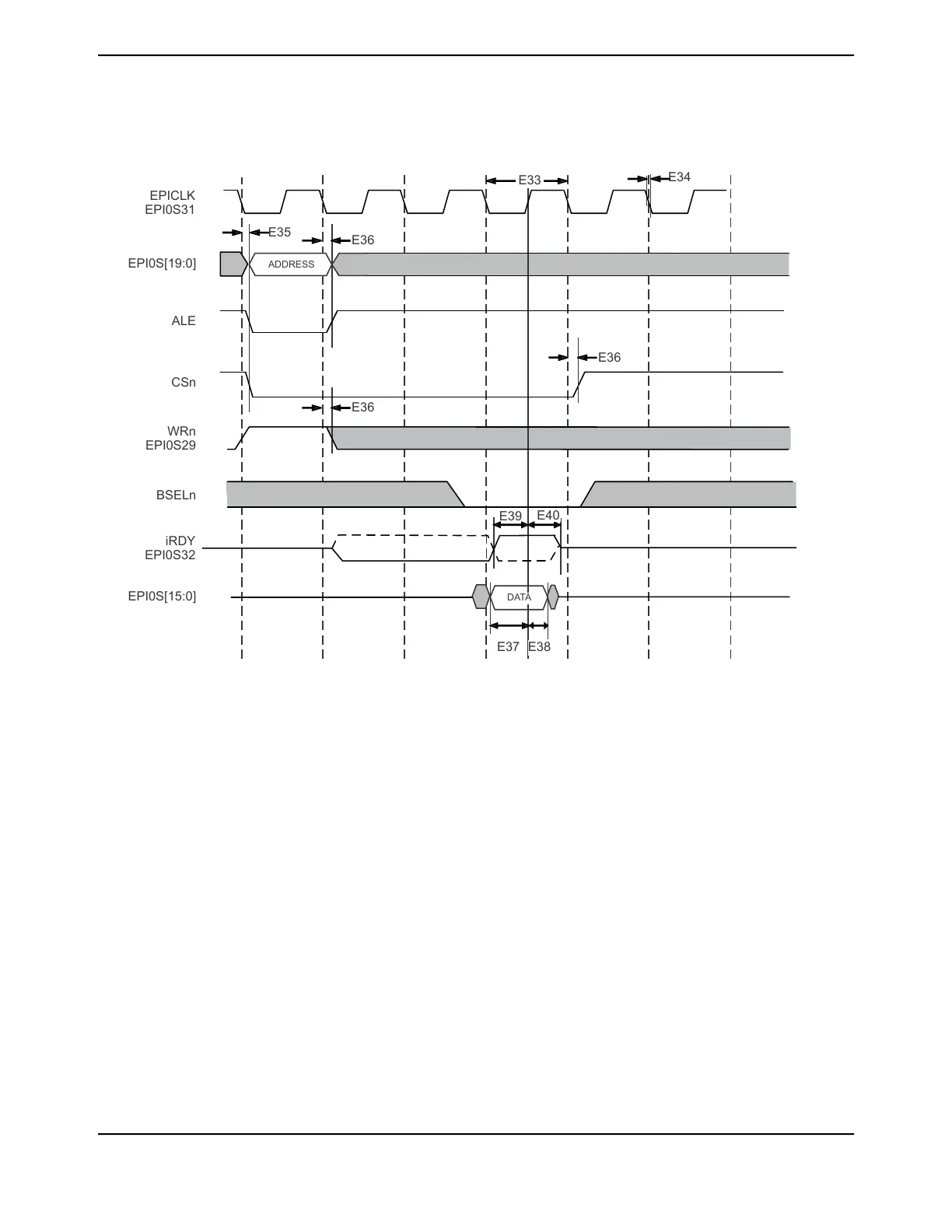

Figure 27-26. PSRAM Single Burst Read
EPICLK
EPI0S31
EPI0S[19:0]
ALE
CSn
EPI0S[15:0]
ADDRESS
E34
E33
E36
E39
WRn
EPI0S29
BSELn
iRDY
EPI0S32
DATA
E35
E40
E37
E38
E36
E36
1859June 18, 2014
