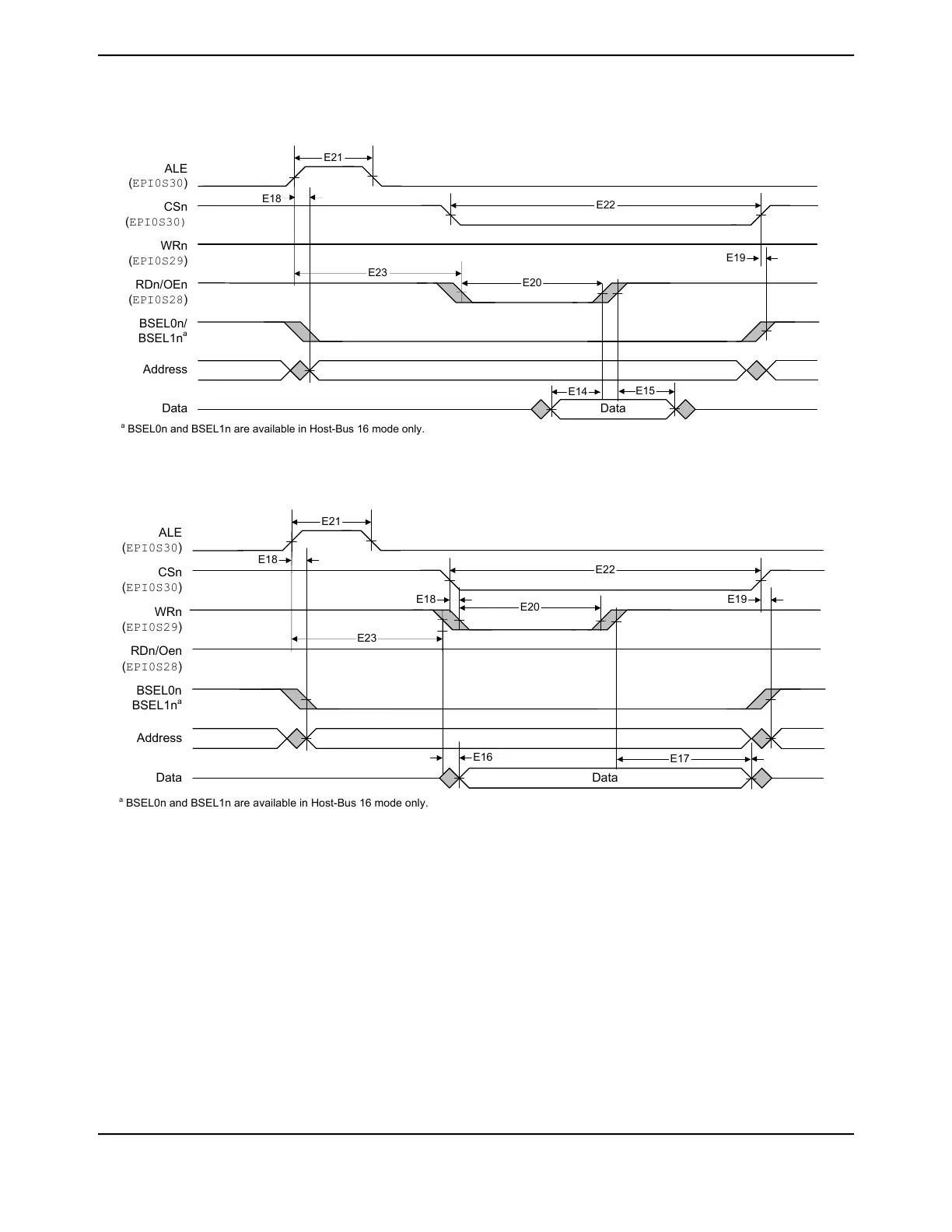

Figure 27-21. Host-Bus 8/16 Asynchronous Mode Read Timing
Data
ALE
(EPI0S30)
CSn
(EPI0S30)
WRn
(EPI0S29)
RDn/OEn
(EPI0S28)
Address
Data
BSEL0n/
BSEL1n
a
a
BSEL0n and BSEL1n are available in Host-Bus 16 mode only.
E21
E18
E22
E19
E20
E14
E15
E23
Figure 27-22. Host-Bus 8/16 Asynchronous Mode Write Timing
Data
ALE
(EPI0S30)
CSn
(EPI0S30)
WRn
(EPI0S29)
RDn/Oen
(EPI0S28)
Address
Data
E18
E18
E16
E20
E19
E21
E22
E23
BSEL0n
BSEL1n
a
a
BSEL0n and BSEL1n are available in Host-Bus 16 mode only.
E17
June 18, 20141856
Texas Instruments-Production Data
Electrical Characteristics
