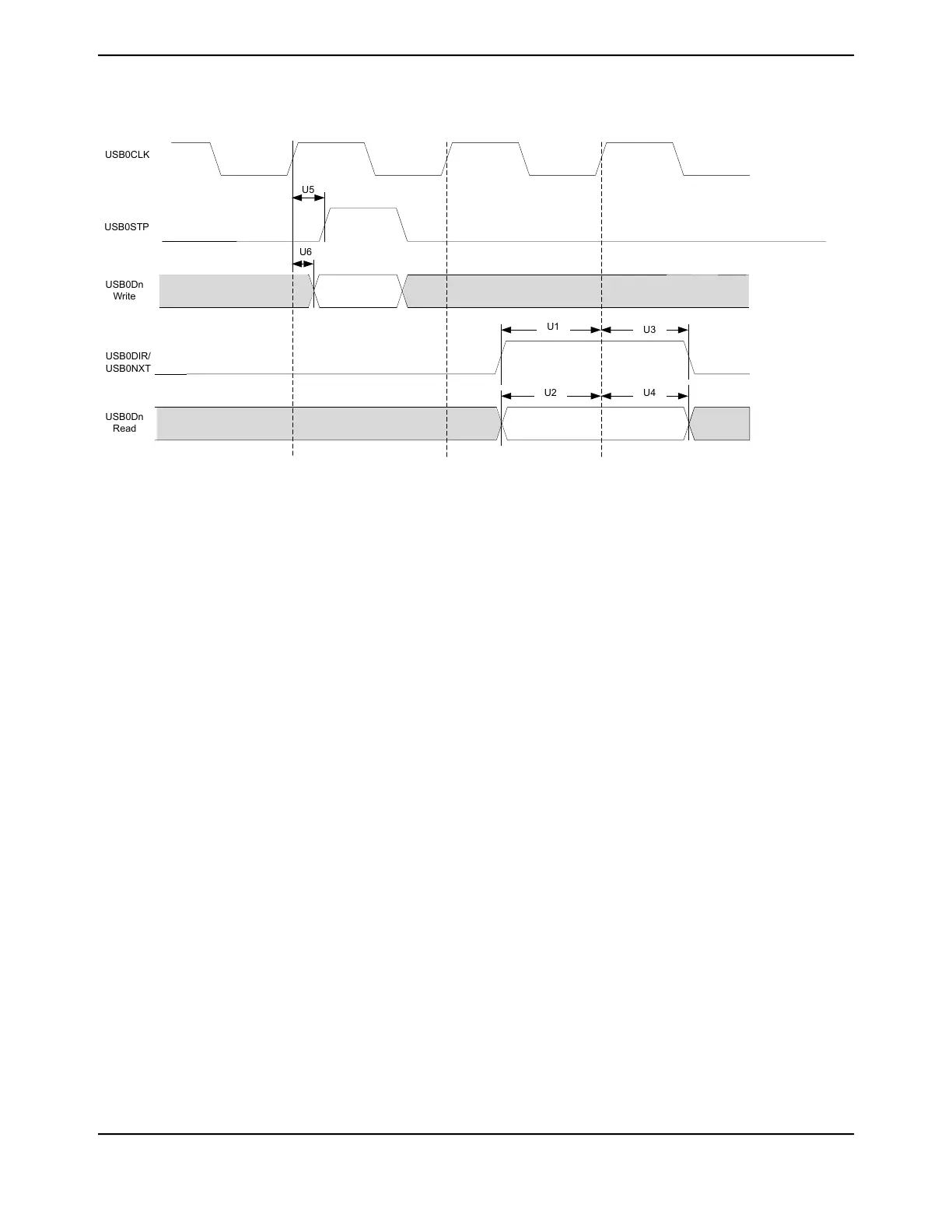

Figure 27-41. ULPI Interface Timing Diagram
USB0CLK
USB0STP
USB0Dn
Write
USB0DIR/
USB0NXT
USB0Dn
Read
U1
U2
U3
U4
U5
U6
June 18, 20141876
Texas Instruments-Production Data
Electrical Characteristics
