Texas Instruments TM4C1294NCPDT - Figure 18-13. Master TRANSMIT with Repeated START after Master RECEIVE

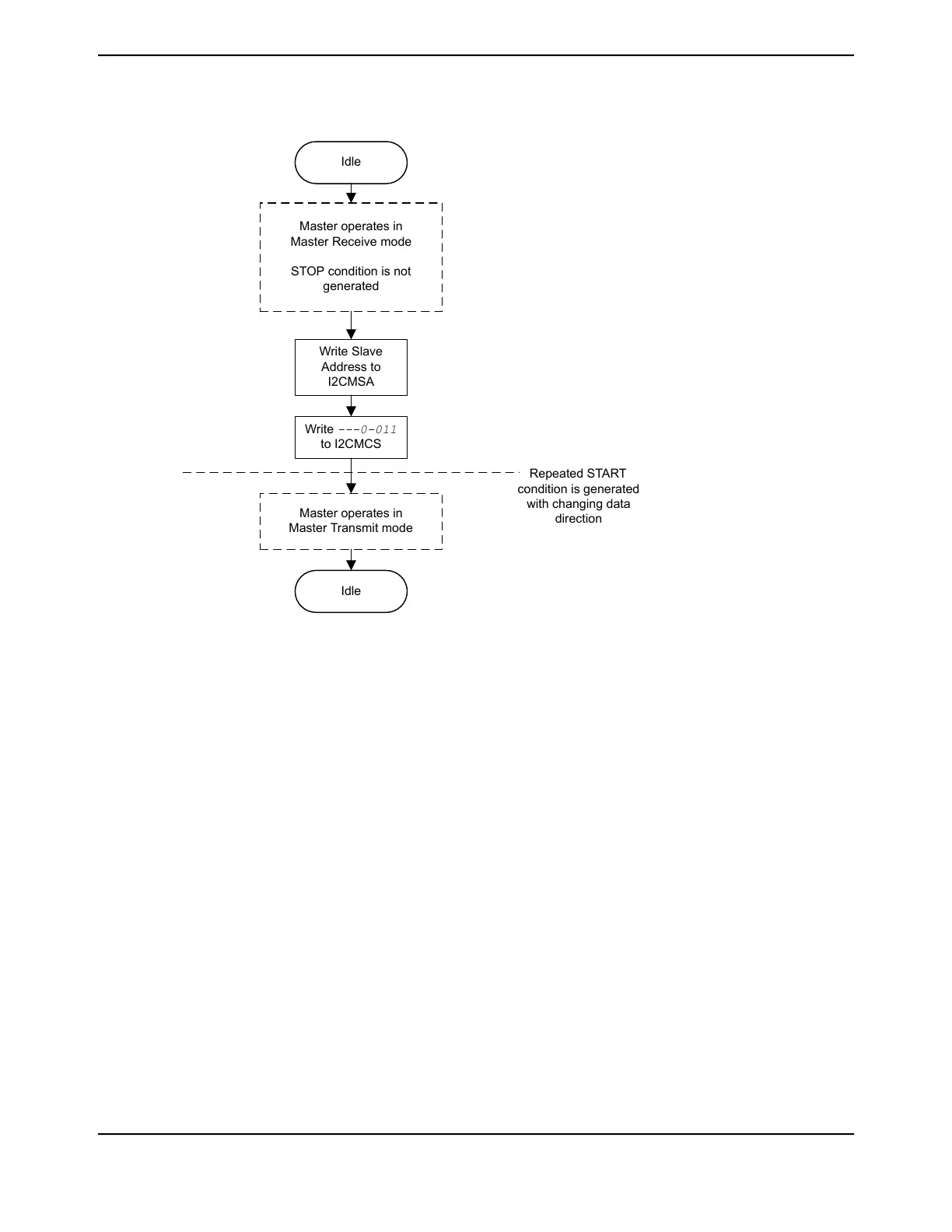

Figure 18-13. Master TRANSMIT with Repeated START after Master RECEIVE
Idle
Master operates in
Master Receive mode
STOP condition is not
generated
Write Slave
Address to
I2CMSA
Write ---0-011
to I2CMCS
Master operates in
Master Transmit mode
Idle
Repeated START
condition is generated
with changing data
direction
