External Port DMA
3-100 ADSP-214xx SHARC Processor Hardware Reference
External Port DMA
The external port has two DMA channels that can use either the
SDRAM/DDR2 controller or the asynchronous memory interface (AMI).
The AMI controller supports DMA with an external data width of 8 bits.
The SDRAM/DDR2 controllers support DMA with an external data
width of 16-bits.
External Port DMA Parameter Registers
These registers are used to set up and control DMA through the proces-
sor’s external port. For information on these registers and on how to set

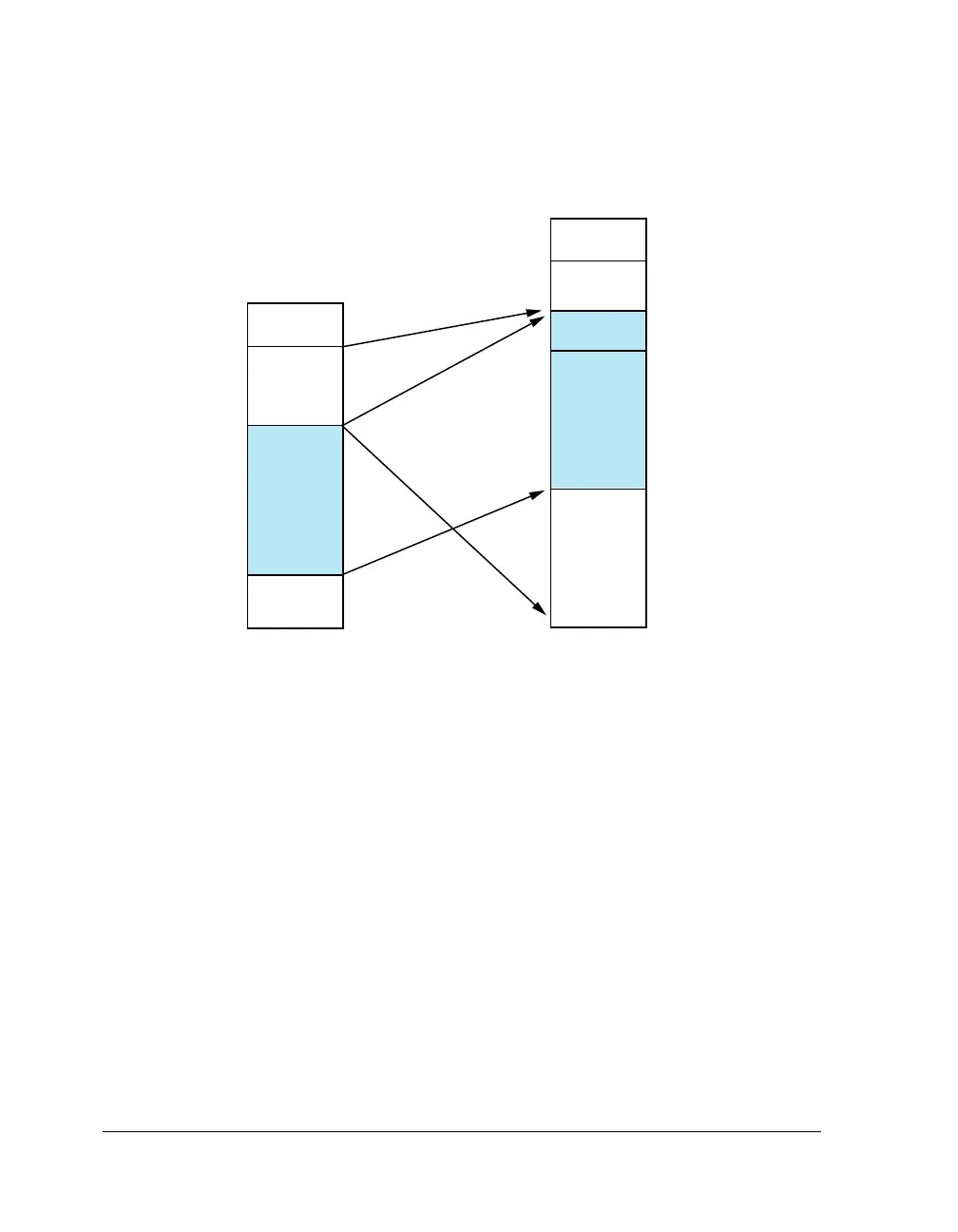

Figure 3-20. Translation of Logical to Physical External
Memory Addressing
0x20 0000
0x40 0000
0x5F FFFF
0xFF FFFF
0x11F FFFF
0xFF FFFF
0x80 0000
0x60 0000
LOGICAL ADDRESS
(GENERATED BY SEQUENCER)
PHYSICAL ADDRESS (TRANSLATED
BY INTERFACE FOR X16 DEVICE)
ISA (NW)
OPERATION
VISA (SW)
OPERATION
0x60 0000
To Next Page
