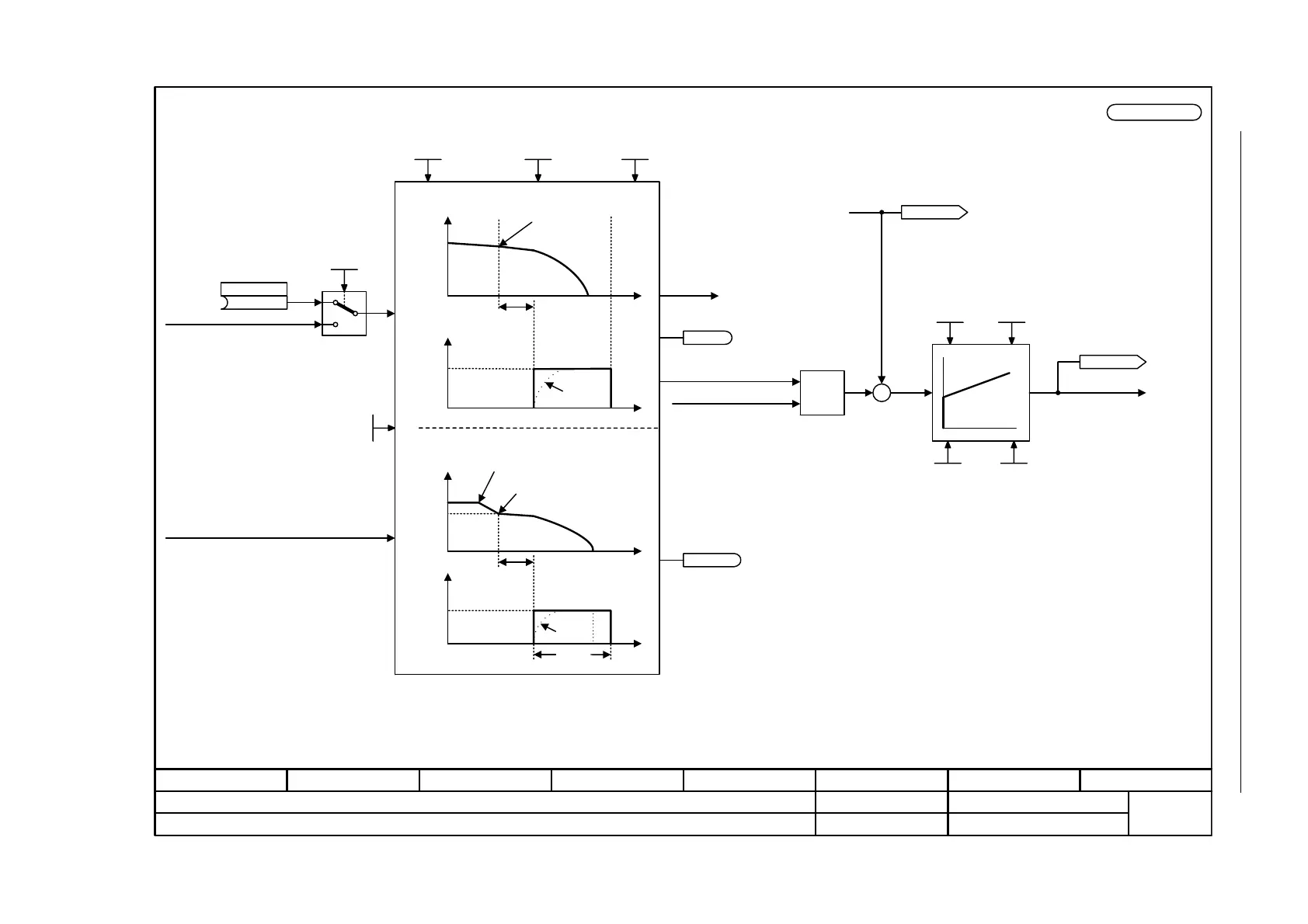

Figure 2-200 7017 – DC injection brake (p0300 = 1xx)
- 7017 -
Function diagram
87654321
fp_7017_01_eng.vsd
DO: SERVO, VECTOR
SINAMICS S
22.05.07 V02.05.01
Technology functions - DC brake (p0300 = 1xx)
To pulse disable
To sequencer
<1> The DC braking current is determined during automatic calculation (p0340 = 1).
<2> The de-magnetization time is determined during automatic calculation (p0340 = 1, 3).
<3> As soon as the standstill threshold (p1226) has been reached, the DC current injection will be aborted prematurely.
<4> Signal r1239.8 is only set while the DC brake is active.
<5> Only for SERVO.
<6> Only for VECTOR.
MIN
–
Current actual values
[5730]
[6714]
Kp Tn
p0115
r1239.10
DC brake ready
The parameters of the I_max current controller are also used.
DCBRK I_brake
0...10000 [A]
p1232[M] (0)
DCBRK time
0...3600 [s]
p1233[M] (0)
DCBRK n_start
20...210000 [1/min]
p1234[M] (0)
<1>
ASC config
0...3
p1231[M] (0)
(0)
ASC act
p1230[C]
OFF
Mot t_de-excitat
0...20 [s]
p0347[M] (0)
<2>
0
4
DC brake fault response
DC brake active
r1239.8
<4>
I_max_U_ctrl Kp
0.000...100000.000
p1345[D] (0.000)
I_max_U_ctrl Tn
0.000...50.000 [s]
p1346D] (0.030)
From I
2
t control [8014]
|I_act|
r0068[0]
I_act abs val
To control [5730][6730]
To V/f characteristic [6300]
r0072
U_output
I_ctrl Kp
0.000...100000.000 [V/A]
p1715[D] (0.000)
I_ctrl Tn
0.00...1000.00 [ms]
p1717[D] (2.00)
<5> <5>
<6>
<6>
n_set
BICO = 1
p0347
BICO = 0
n_set
p1234
p1233
p1232
p0347
Pulse disable
<3>
Braking response
p1232
|I_set|
t
t
|I_set|
n_act
n_act
t
|I_act|
|I_act|
Pulse disable
t
