TBCNT

0000h

FFFFh

CTR = CMPA

CMPA

(value)

CMPB

(value)

TBPHS

(value)

TBPRD

(value)

CTR = CMPB

EPWMxSYNCI

0000h

FFFFh

CTR = CMPA

TBCNT

CMPA

(value)

CMPB

(value)

TBPHS

(value)

TBPRD

(value)

CTR = CMPB

EPWMxSYNCI

Enhanced PWM (ePWM) Module

www.ti.com

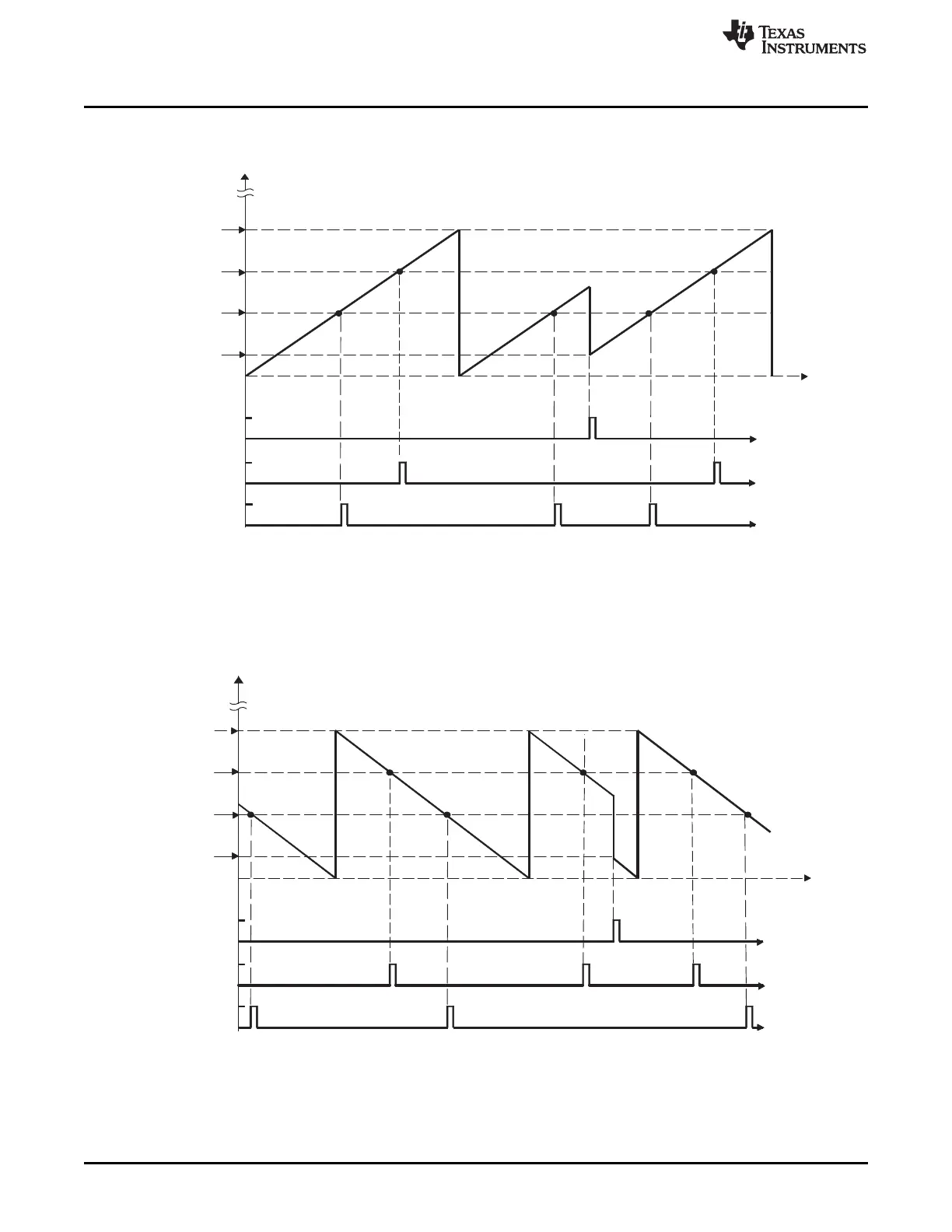

Figure 15-19. Counter-Compare Event Waveforms in Up-Count Mode

NOTE: An EPWMxSYNCI external synchronization event can cause a discontinuity in the TBCNT count

sequence. This can lead to a compare event being skipped. This skipping is considered normal operation

and must be taken into account.

Figure 15-20. Counter-Compare Events in Down-Count Mode

1514

Pulse-Width Modulation Subsystem (PWMSS) SPRUH73H–October 2011–Revised April 2013

Submit Documentation Feedback
