16.2 Integration
This device implements the USB2.0 OTG dual port module and PHY for interfacing to USB as a peripheral
or host.

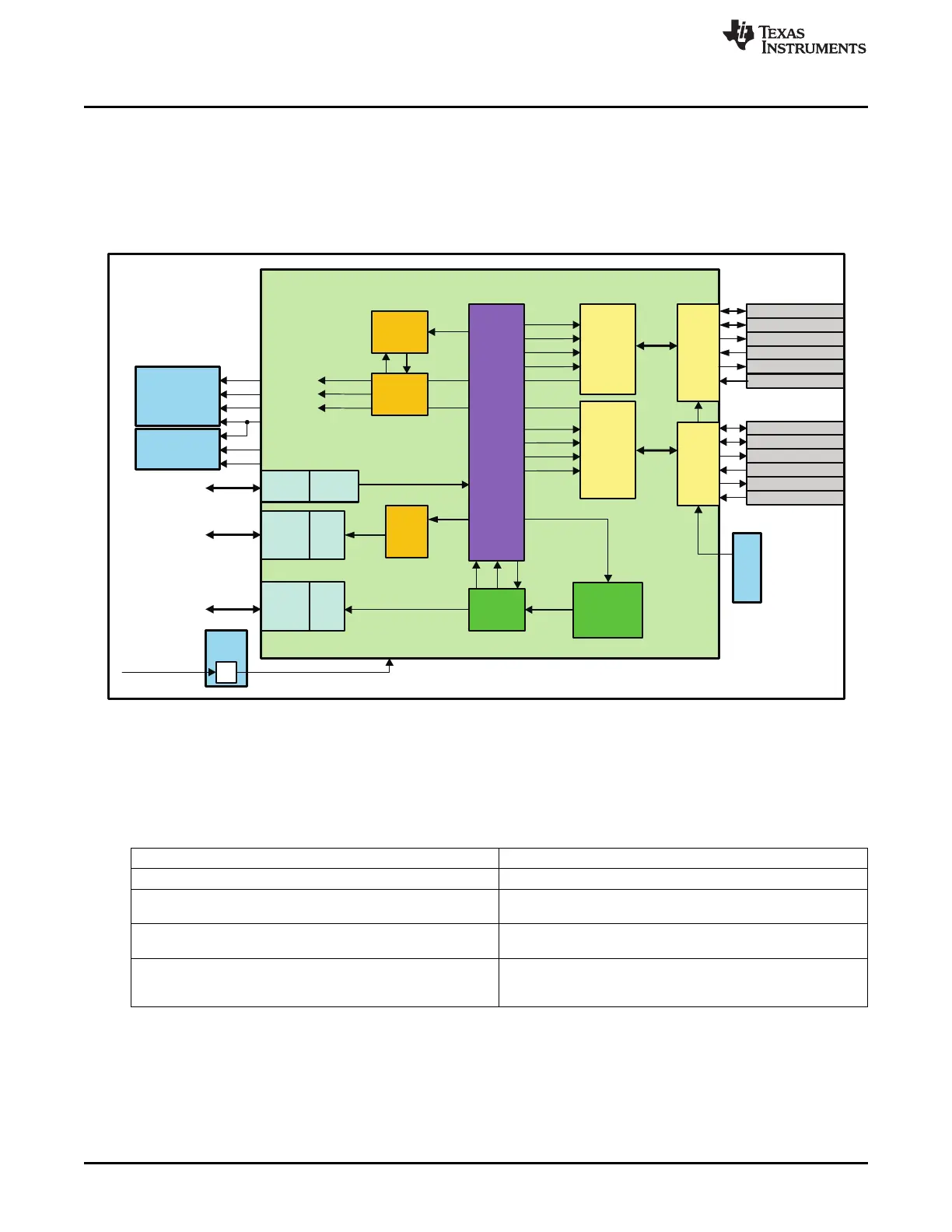

Figure 16-1 shows the integration of the USB module on this device.
Figure 16-1. USB Integration
16.2.1 USB Connectivity Attributes
The USB module itself has a very large number of interrupt outputs. For ease of integration, these outputs
are all routed to a pair of interrupt aggregators. These aggregator blocks generate a single interrupt on the
first occurrence of any interrupt from the USB or DMA logic of the module.
Table 16-1. USB Connectivity Attributes
Attributes Type
Power domain Peripheral Domain
Clock domain PD_PER_L3S_GCLK (OCP)
CLKDCOLDO (PHY)
Reset signals DEF_DOM_RST_N
USB_POR_N
Idle/Wakeup signals Smart idle
Wakeup
Standby
