L4 Peripheral
Interconnect
MPU Subsystem
Error Location
Module
POROCPSINTERRUPT
PIMIDLEREQ
PORSIDLEACK[1:0]
www.ti.com
ELM
7.4.2 Integration
The error location module (ELM) is used to extract error addresses from syndrome polynomials generated
using a BCH algorithm. Each of these polynomials gives a status of the read operations for a 512 bytes
block from a NAND flash and its associated BCH parity bits, plus optionally some spare area information.
The ELM is intended to be used in conjunction with the GPMC. Syndrome polynomials generated on-the-
fly when reading a NAND Flash page and stored in GPMC registers are passed to the ELM module. The
MPU can then easily correct the data block by flipping the bits pointed to by the ELM error locations
outputs.

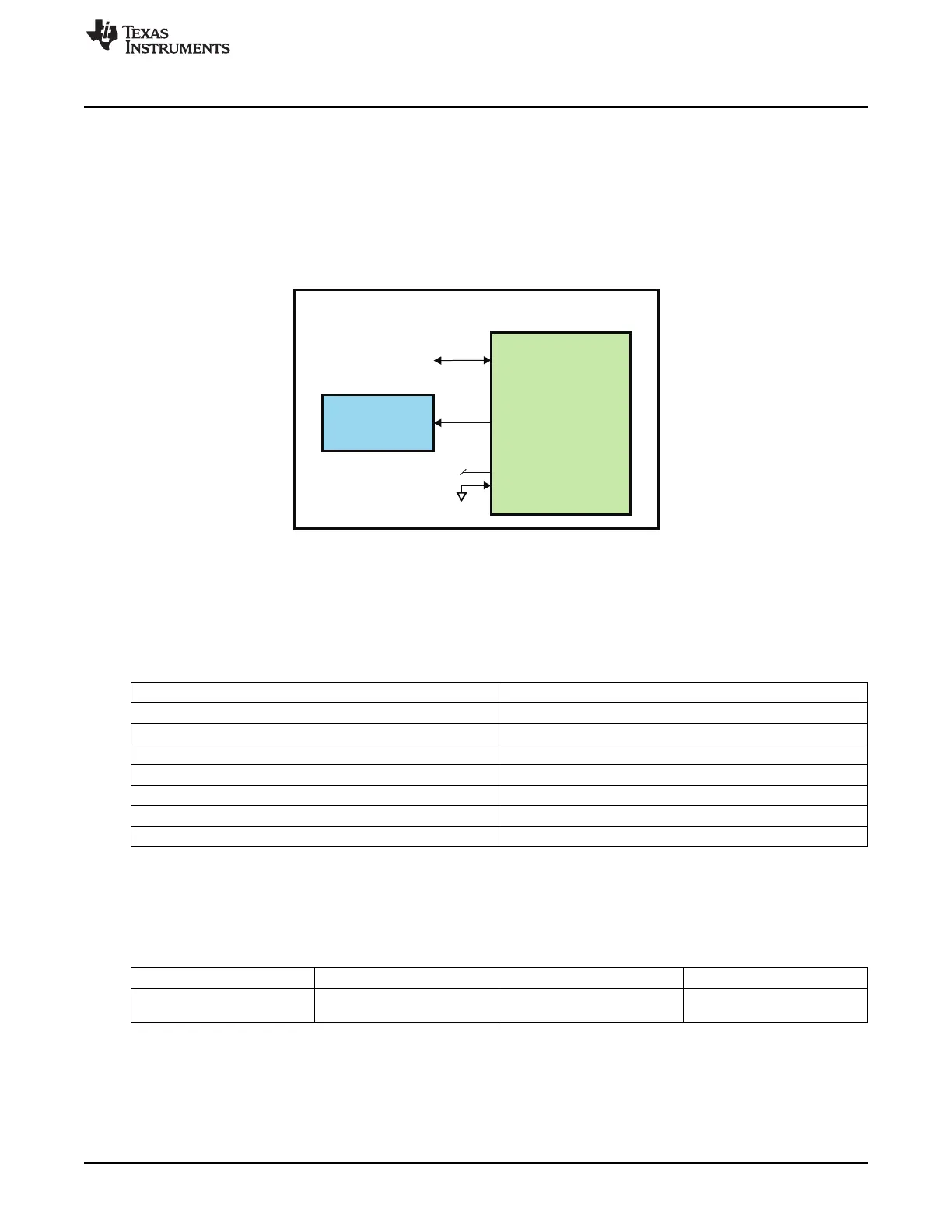

Figure 7-140. ELM Integration
7.4.2.1 ELM Connectivity Attributes
The general connectivity for the ELM module in this device is summarized in Table 7-163.
Table 7-163. ELM Connectivity Attributes
Attributes Type
Power Domain Peripheral Domain
Clock Domain L4PER_L4LS_GCLK
Reset Signals PER_DOM_RST_N
Idle/Wakeup Signals Smart Idle
Interrupt Requests 1 interrupt to MPU Subsystem
DMA Requests None
Physical Address L4 Peripheral slave port
7.4.2.2 ELM Clock and Reset Management
The ELM operates from a single OCP interface clock.
Table 7-164. ELM Clock Signals
Clock Signal Max Freq Reference / Source Comments
Functional/interface clock 100 MHz CORE_CLKOUTM4 / 2 pd_per_l4ls_gclk
From PRCM
7.4.2.3 ELM Pin List
The ELM module does not include any external interface pins.
