www.ti.com
Enhanced PWM (ePWM) Module
15.2.3.3 Controlling Multiple Buck Converters With Independent Frequencies
One of the simplest power converter topologies is the buck. A single ePWM module configured as a
master can control two buck stages with the same PWM frequency. If independent frequency control is
required for each buck converter, then one ePWM module must be allocated for each converter stage.
Figure 15-56 shows four buck stages, each running at independent frequencies. In this case, all four
ePWM modules are configured as Masters and no synchronization is used. Figure 15-57 shows the
waveforms generated by the setup shown in Figure 15-56; note that only three waveforms are shown,
although there are four stages.

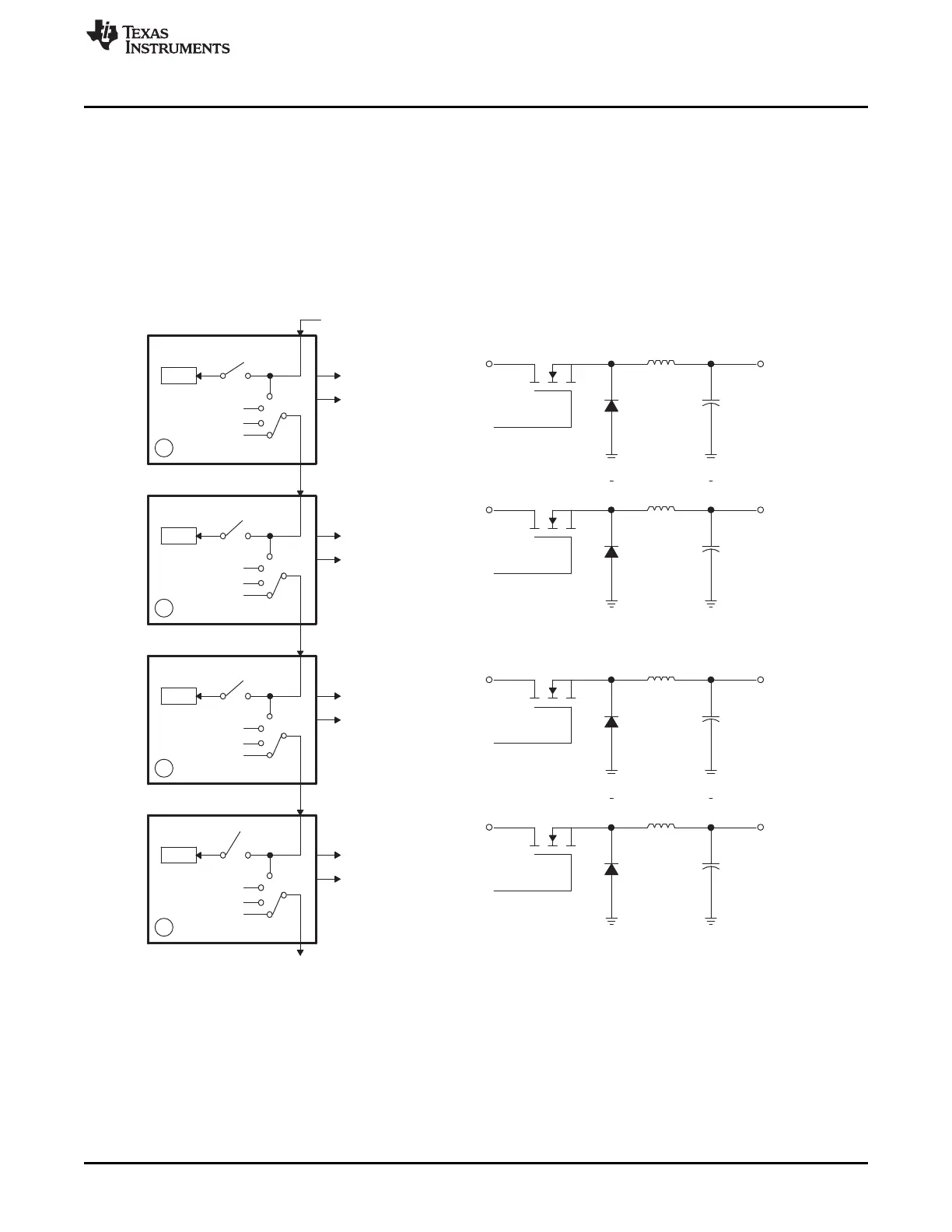

Figure 15-56. Control of Four Buck Stages. Here F
PWM1
≠ F
PWM2
≠ F
PWM3
≠ F
PWM4
NOTE: Θ = X indicates value in phase register is a "don't care"
1559
SPRUH73H–October 2011–Revised April 2013 Pulse-Width Modulation Subsystem (PWMSS)
Submit Documentation Feedback
Copyright © 2011–2013, Texas Instruments Incorporated
