11.3.19.4.3 Continuous Operation
Configuring an EDMA3 channel to receive a single frame of data is useful, and is applicable to some
systems. A majority of the time, however, data is going to be continuously transmitted and received
throughout the entire operation of the processor. In this case, it is necessary to implement some form of
linking such that the EDMA3 channels continuously reload the necessary parameter sets. In this example,
McASP is configured to transmit and receive data on a T1 array. To simplify the example, only two
channels are active for both transmit and receive data streams. Each channel receives packets of
128 elements. The packets are transferred from the serial port to internal memory and from internal
memory to the serial port, as shown Figure 11-32.
The McASP generates AREVT for every element received and generates AXEVT for every element
transmitted. To service the data streams, the DMA channels associated with the McASP must be setup for
1D-to-1D transfers with A-synchronization.
Figure 11-33 shows the parameter entries for the channel for these transfers. To service the McASP
continuously, the channels must be linked to a duplicate PaRAM set in the PaRAM. After all frames have
been transferred, the EDMA3 channels reload and continue. Figure 11-34 shows the reload parameters
for the channel.
11.3.19.4.3.1 Receive Channel
EDMA3 channel 15 services the incoming data stream of McASP. The source address is set to that of the
receive serializer buffer, and the destination address is set to the first element of the data block. Because
there are two data channels being serviced, A and B, they are to be located separately within the L2
SRAM.
To facilitate continuous operation, a copy of the PaRAM set for the channel is placed in PaRAM set 64.
The LINK option is set and the link address is provided in the PaRAM set. Upon exhausting the channel
15 parameter set, the parameters located at the link address are loaded into the channel 15 parameter set
and operation continues. This function continues throughout device operation until halted by the CPU.
11.3.19.4.3.2 Transmit Channel
EDMA3 channel 12 services the outgoing data stream of McASP. In this case the destination address
needs no update, hence, the parameter set changes accordingly. Linking is also used to allow continuous
operation by the EDMA3 channel, with duplicate PaRAM set entries at PaRAM set 65.

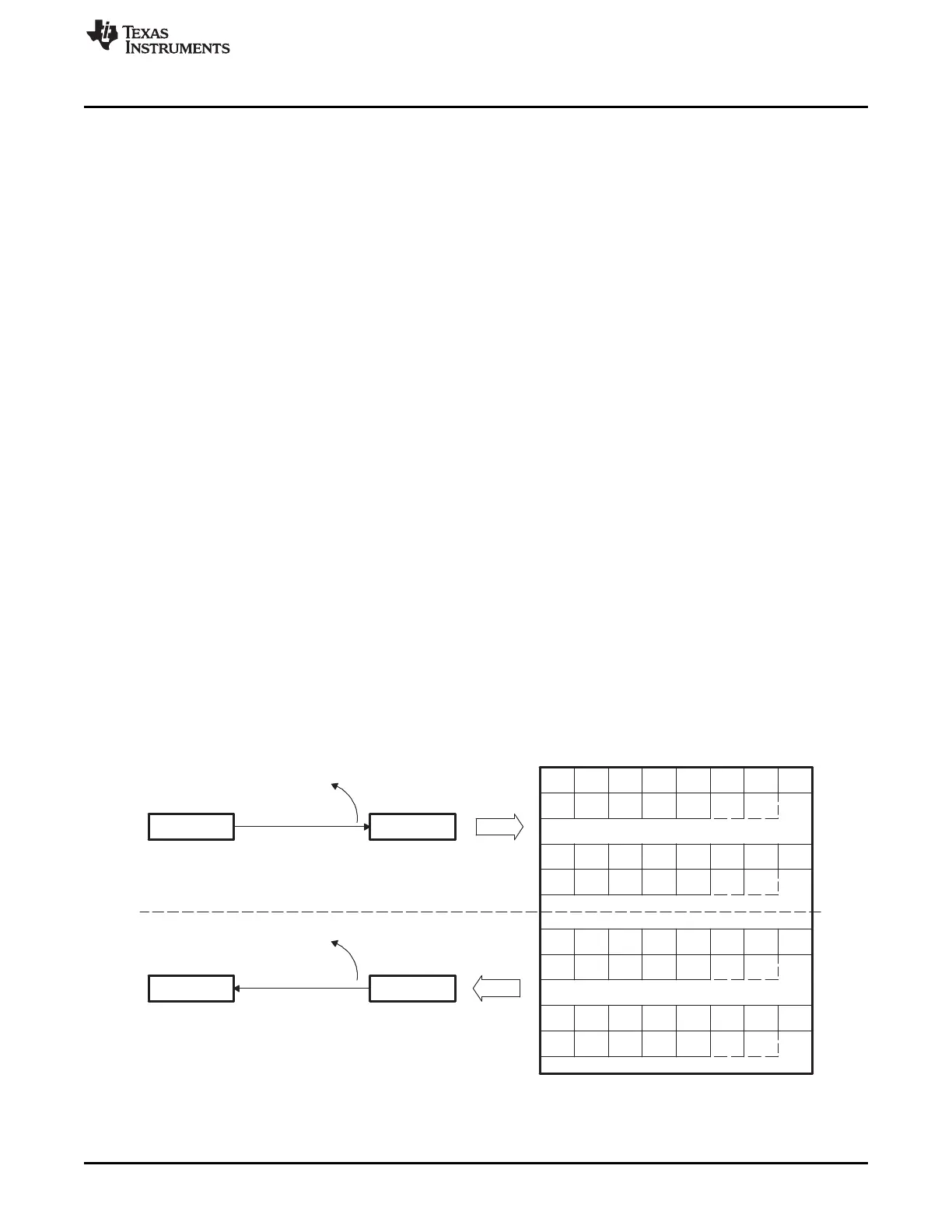

Figure 11-32. Servicing Continuous McASP Data Example
