GPMC_FCLK
GPMC_CLK
Valid address
Valid address Data
nBE1/nBE0
nCS
nADV
nWE
A
A/D
DIR
OUT
A
N
B
K
J
J
J
E
F
GPMC
www.ti.com
H = ((OEOFFTIME - ACCESSTIME) * (TIMEPARAGRANULARITY + 1) + 0.5 * OEEXTRADELAY) *
GPMC_FCLK period
I = ((OEOFFTIME + (N - 1) * PAGEBURSTACCESSTIME - CSONTIME) * (TIMEPARAGRANULARITY +
1) + 0.5 * (OEEXTRADELAY - CSEXTRADELAY)) * GPMC_FCLK period, where N = page burst access
number
J = (CSONTIME * (TIMEPARAGRANULARITY + 1) + 0.5 * CSEXTRADELAY) * GPMC_FCLK period
K = ((ADVONTIME - CSONTIME) * (TIMEPARAGRANULARITY + 1) + 0.5 * (ADVEXTRADELAY -
CSEXTRADELAY)) * GPMC_FCLK period
L = ((OEONTIME - CSONTIME) * (TIMEPARAGRANULARITY + 1) + 0.5 * (OEEXTRADELAY -
CSEXTRADELAY)) * GPMC_FCLK period M = ((ACCESSTIME - CSONTIME) *
(TIMEPARAGRANULARITY + 1) - 0.5 * CSEXTRADELAY) * GPMC_FCLK period
GPMC_BE0n_CLE/GPMC_BE1n pulse:
For single read: N = RDCYCLETIME * (TIMEPARAGRANULARITY + 1) * GPMC_FCLK period
For burst read: N = (RDCYCLETIME + (N - 1) * PAGEBURSTACCESSTIME) *
(TIMEPARAGRANULARITY + 1) * GPMC_FCLK period, where N = page burst access number
For burst write: N = (WRCYCLETIME + (N - 1) * PAGEBURSTACCESSTIME) *
(TIMEPARAGRANULARITY + 1) * GPMC_FCLK period, where N = page burst access number
O = ((WRCYCLETIME + (N - 1) * PAGEBURSTACCESSTIME - CSONTIME) *
(TIMEPARAGRANULARITY + 1) + 0.5 * (ADVEXTRADELAY - CSEXTRADELAY)) * GPMC_FCLK period

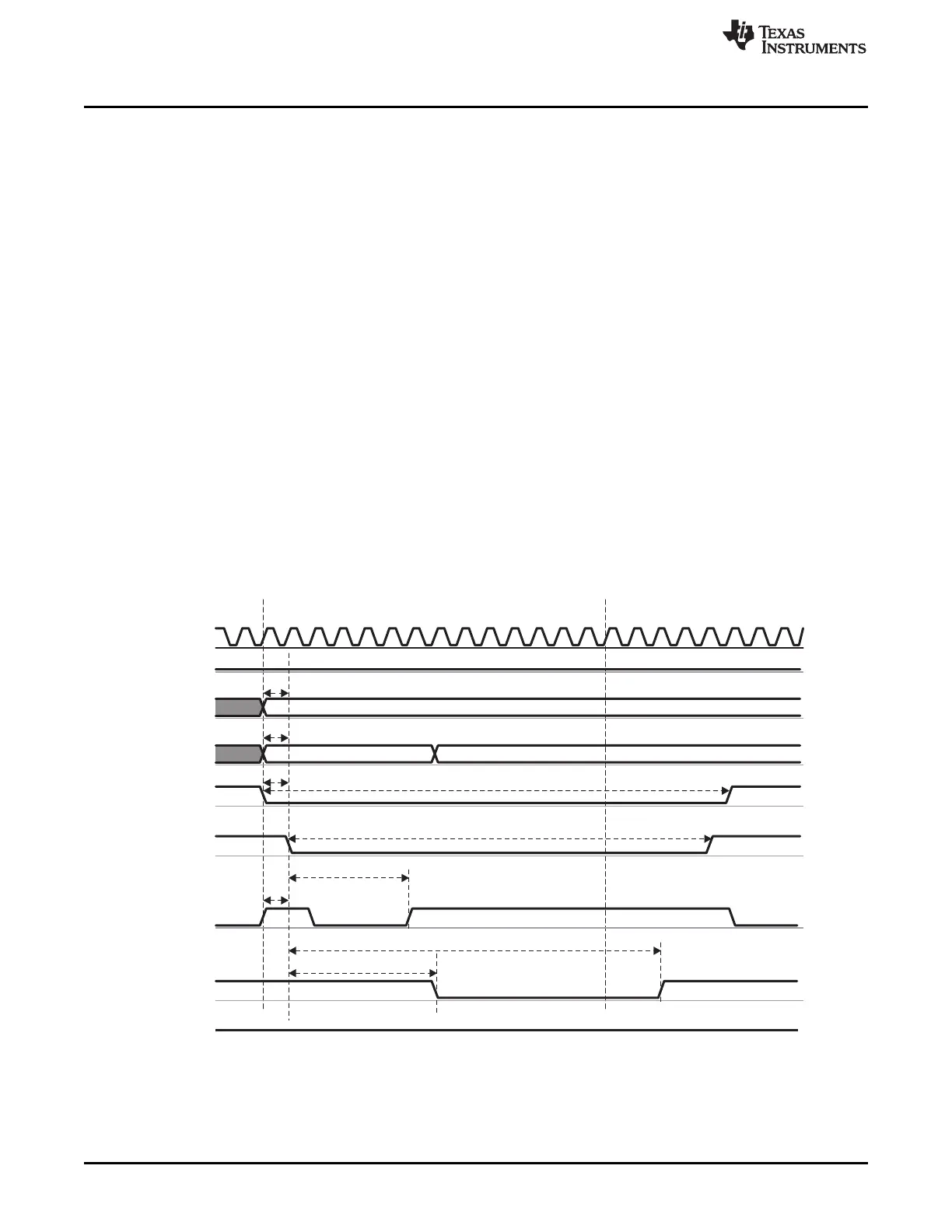

Figure 7-46 shows an asynchronous NOR single write simplified example where formulas are associated
with signal waves.
Figure 7-46. Asynchronous NOR Single Write Simplified Example
Write multiple access is not supported in asynchronous mode. If WRITEMULTIPLE is enabled with
WRITETYPE as asynchronous, the GPMC processes single asynchronous accesses.
