To Next Page

To Previous Page

TX Register

RX Register

FIFO

64-Byte

Depth

TX Shift Register

RX Shift Register

TX Shift Clock

RX Shift Clock

SPI Domain

OCP Domain

Configuration:

MCSPI_CH(i)CONF[TRM]=012 Receive only mode

MCSPI_CH(i)CONF[FFRE]=0x1 FIFO enabled on receive path

MCSPI_CH(i)CONF[FFWE] not applicable

OCP Bus

SPIDATAO

SPIDATAI

TX Register

RX Register

FIFO

64-Byte

Depth

TX Shift Register

RX Shift Register

TX Shift Clock

RX Shift Clock

SPI Domain

OCP Domain

Configuration:

MCSPI_CH(i)CONF[TRM]=0x2 Transmit only mode

MCSPI_CH(i)CONF[FFRE]=0x1 FIFO enabled on transmit path

MCSPI_CH(i)CONF[FFWE] not applicable

OCP Bus

SPIDATAO

SPIDATAI

www.ti.com

Functional Description

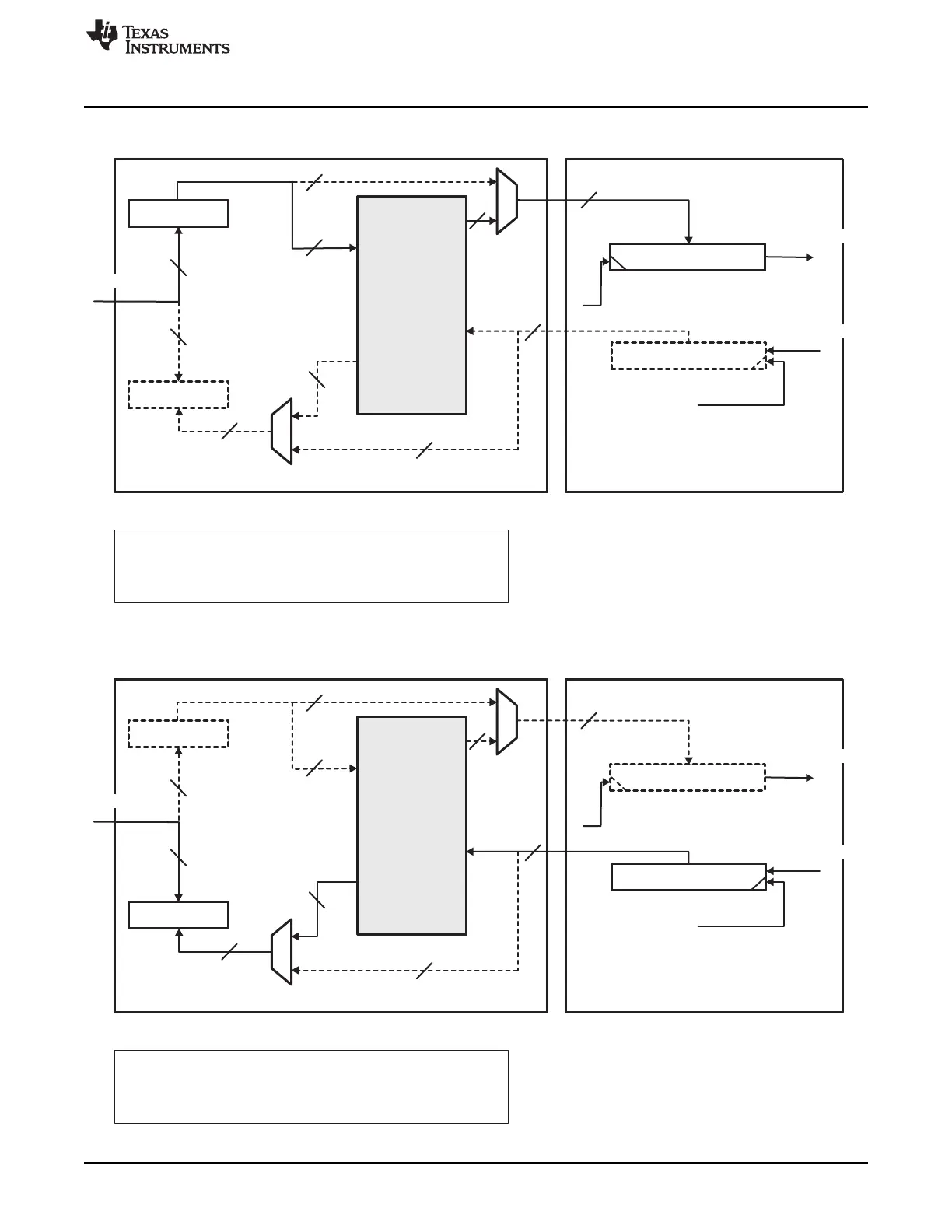

Figure 24-17. Transmit-Only Mode With FIFO Used

Figure 24-18. Receive-Only Mode With FIFO Used

4017

SPRUH73H–October 2011–Revised April 2013 Multichannel Serial Port Interface (McSPI)

Submit Documentation Feedback
