Is there an
MBR?
Get Booting File
Is this a
FAT12/16/32
partition?
Yes
No
Success
Failed
No
Read 1st sector
Is there an
active primary
FAT 12/16/32
partition?
Read partition 1st sector
Yes
Yes No
Buffers FAT entries in FAT
Buffer
Failed
Passed
Failed
Passed
Failed
Failed
Find booting file
in the root directory
Functional Description
www.ti.com

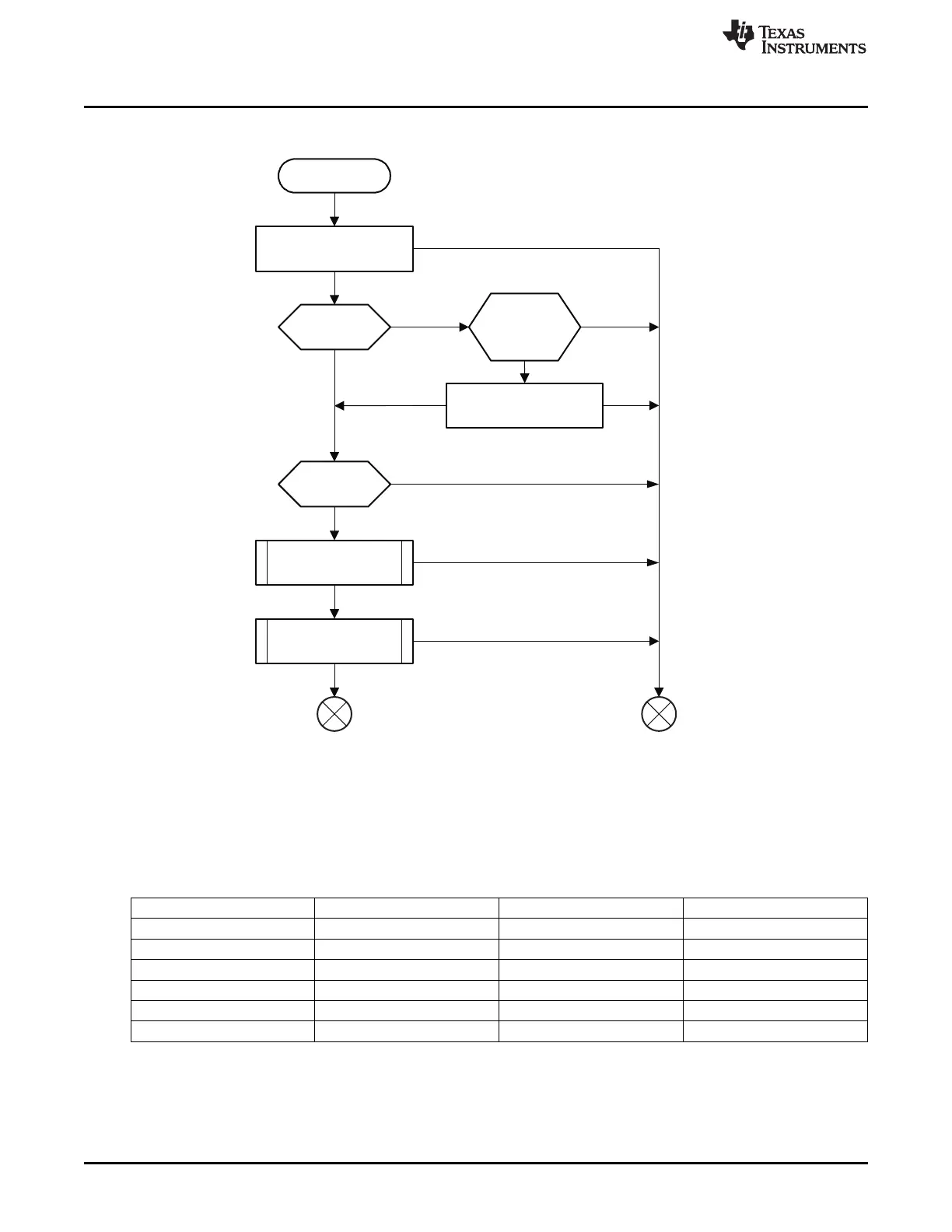

Figure 26-19. MMC/SD Booting, Get Booting File
26.1.7.5.7.1 Master Boot Record (MBR)
The Master Boot Record is the 1
st
sector of a memory device. It is made out of some executable code and
4 partition entries. The aim of such a structure is to be able to divide the hard disk in partitions mostly
used to boot different systems (i.e. Microsoft Windows™, Linux, …). Its structure is described in Table 26-
22 and Table 26-23. The valid partition types searched by the ROM Code are described in Table 26-24.
Table 26-22. Master Boot Record Structure
Offset Length[bytes] Entry Description Value
0000h 446 Optional Code
01BEh 16 Partition Table Entry (see Table 26-23)
01CEh 16 Partition Table Entry (see Table 26-23)
01DEh 16 Partition Table Entry (see Table 26-23)
01EEh 16 Partition Table Entry (see Table 26-23)
01FEh 2 Signature AA55h
