GPMC

7.1.3.3.10.2.3 Synchronous Single Write

Burst write mode is used for synchronous single or burst accesses (see Figure 7-21).

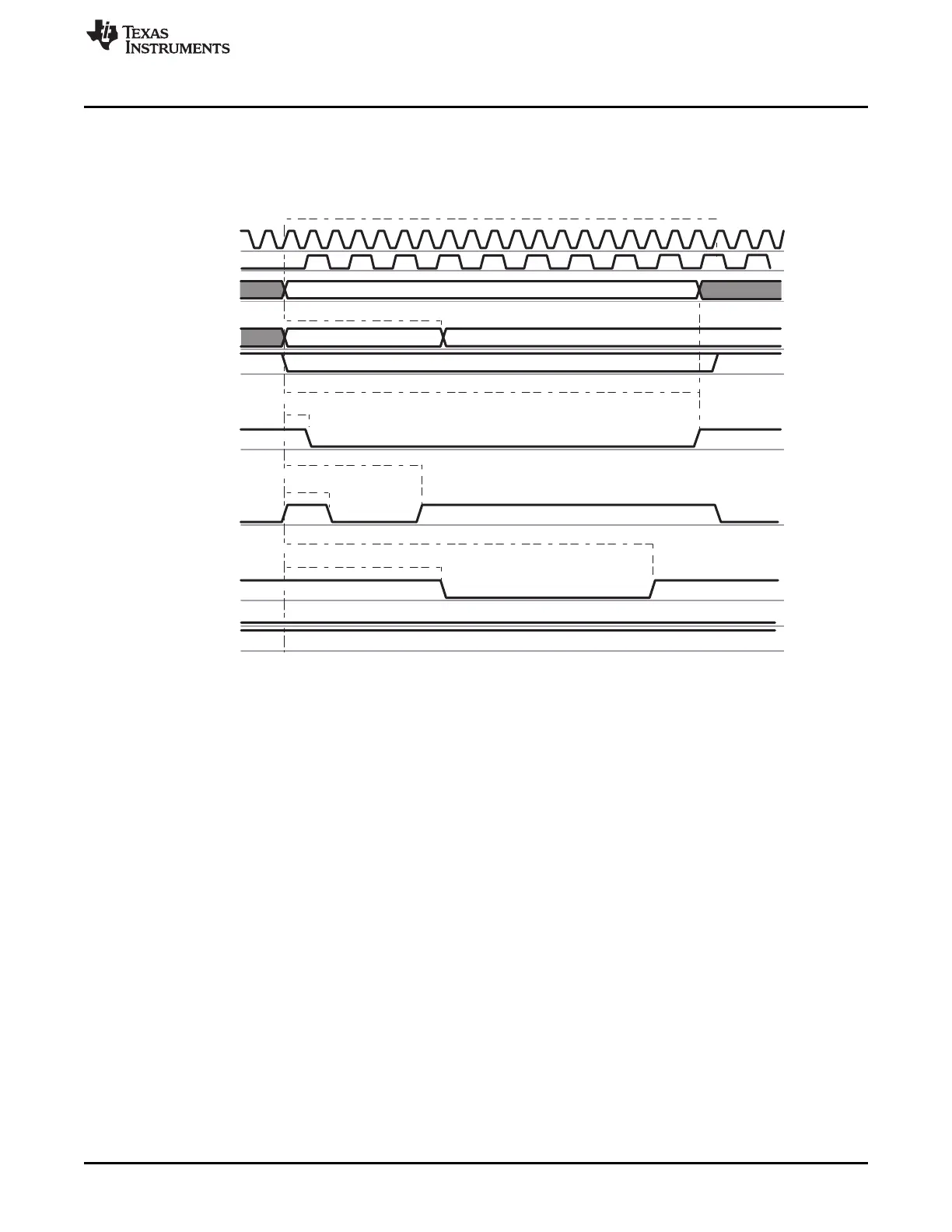

Figure 7-21. Synchronous Single Write on an Address/Data-Multiplexed Device

When the GPMC generates a write access to an address/data-multiplexed device, it drives the data bus

(with address bits A[16:1]) until [19:16] WRDATAONADMUXBUS time. First data of the burst is driven on

the address/data bus at WRDATAONADMUXBUS time.

293

SPRUH73H–October 2011–Revised April 2013 Memory Subsystem

Submit Documentation Feedback
